Catalytic Converter Heat Shield Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Catalytic Converter Heat Shield Removal

EngineCatalytic Converter Heat Shield Removal

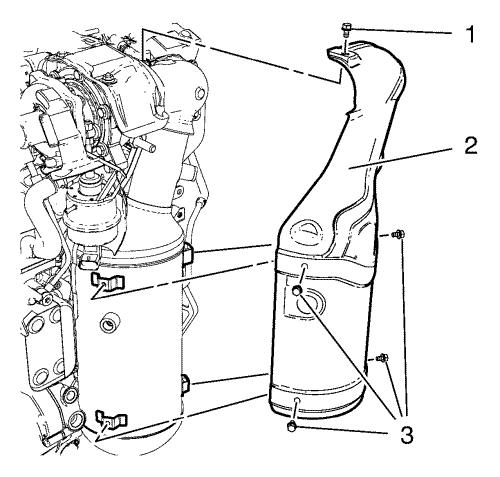

Catalytic Converter Heat Shield Removal            1. Remove the upper catalytic converter heat shield bolt (1). 2. Remove the 4 catalytic converter heat shield bolts (3). 3. Remove the catalytic converter heat shield (2).
