Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions

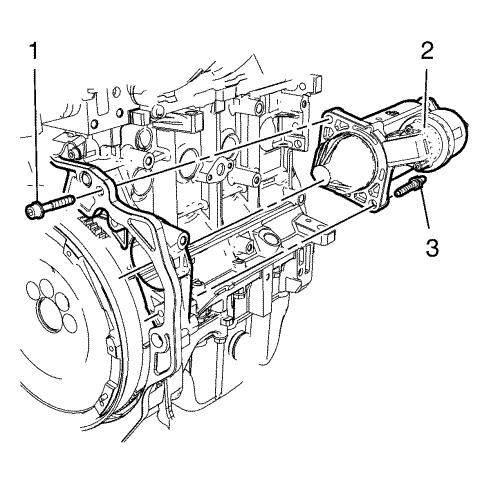

Starter Removal
Starter Removal
1.
Remove the starter bolt (1).
2.
Remove the starter stud (3).
3.
Remove the starter (2).
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Starter Removal
