Engine mechanics - 1.3L Diesel (Tappet Removal): Repair Instructions

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Tappet Removal

EngineTappet Removal

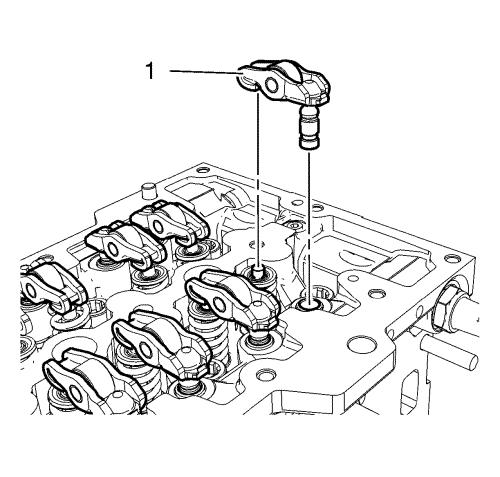

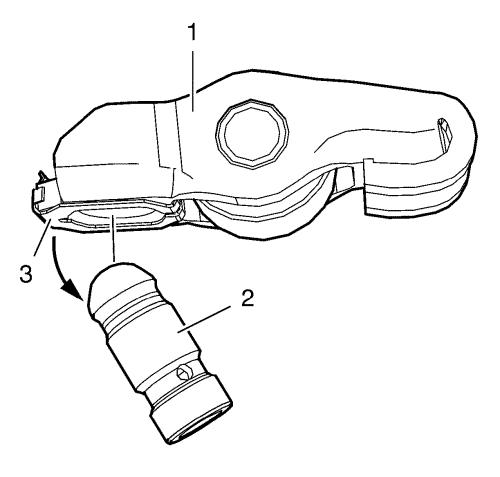

Valve Lifter Removal            Note:  Set aside in the order removed. 1. Remove the 16 valve rocker arms with valve lifter (1).            Note:  Unclip the valve lifter from the valve rocker arm in direction as shown (arrow). Mind to the centring link on the retaining spring (3). 2. Remove the 16 valve lifters (2) from valve rocker arm (1)
