Vacuum Pump Installation (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Vacuum Pump Installation

EngineVacuum Pump Installation

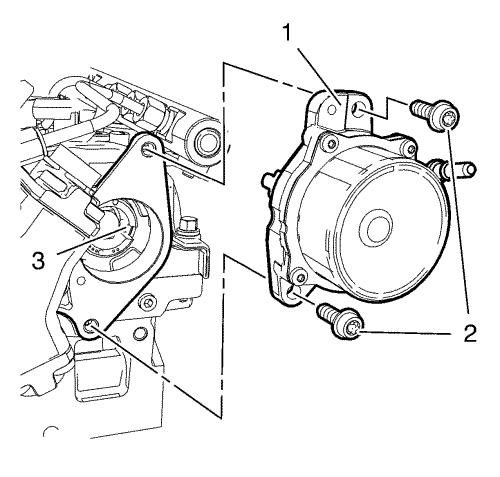

Vacuum Pump Installation            1. Install a NEW vacuum pump gasket. Note:  Do not tilt the vacuum pump actuator at the timing gear groove (3). 2. Install the vacuum pump (1). Caution: Refer to Fastener Caution 3. Install the 2 vacuum pump bolts (2) and tighten to 20 N·m (15 lb ft) .
