EngineEngine Flywheel Installation

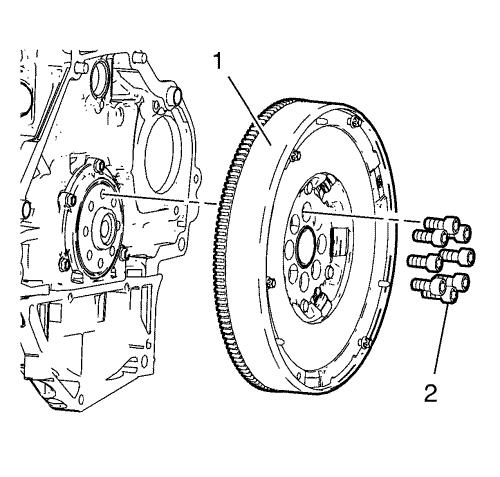

Engine Flywheel Installation Special Tools •  EN-470-B   Torque Wrench •  EN-652   Fixing Tool For equivalent regional tools, refer to Special Tools . 1. Install the EN-652   fixing tool in order to fix the engine flywheel. 2. Recut the 8 threads in the crankshaft.            3. Install the engine flywheel (1). Caution: Refer to Fastener Caution . Caution: Refer to Torque-to-Yield Fastener Caution . 4. Install 8 NEW engine flywheel bolts (2) and tighten in the following order:   4.1 Tighten the bolts to 15 N·m(11 lb ft) .   4.2 Tighten to an additional 35° . Use a EN-470-B   angle torque wrench . 5. Remove the EN-652   fixing tool .
