Astra J
Engine
Engine mechanics - 1.3L Diesel / Repair Instructions
Timing Chain Guide Removal
Timing Chain Guide Removal
1.

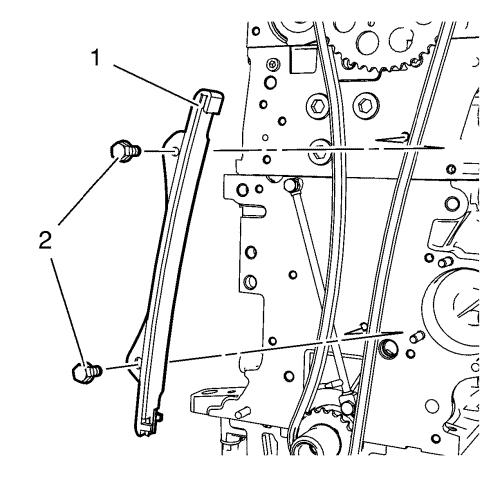

Remove the 2 timing chain guide bolts (2).
2.
Remove the timing chain guide (1).
