Positive Crankcase Ventilation Pipe Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Positive Crankcase Ventilation Pipe Removal

EnginePositive Crankcase Ventilation Pipe Removal

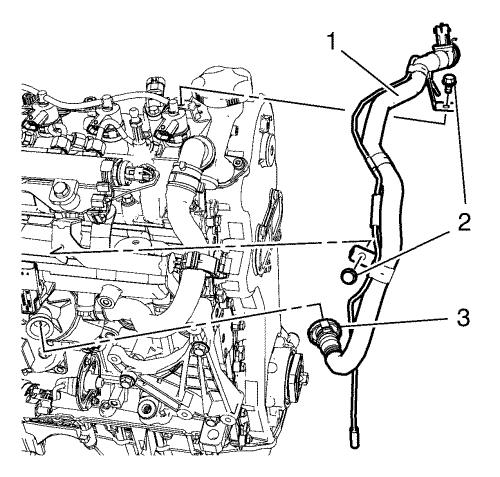

Positive Crankcase Ventilation Pipe Removal            1. Disconnect the positive crankcase ventilation pipe connector (3) from the positive crankcase ventilation oil separator. 2. Remove the 2 positive crankcase ventilation pipe bracket bolts (2). 3. Remove the positive crankcase ventilation pipe (1).
