Engine mechanics - 1.3L Diesel (Generator Installation): Repair Instructions

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Generator Installation

EngineGenerator Installation

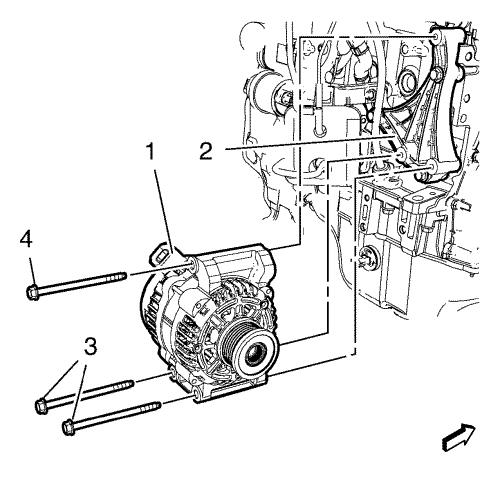

Generator Installation            1. Install the generator (1) to the generator bracket (2). Caution: Refer to Fastener Caution 2. Install the 2 lower generator bolts (3) and tighten to 22 N·m (16 lb ft) . 3. Install the upper generator bolt (4) and tighten to 22 N·m (16 lb ft) .
