Oil Pump Assemble (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Oil Pump Assemble

EngineOil Pump Assemble

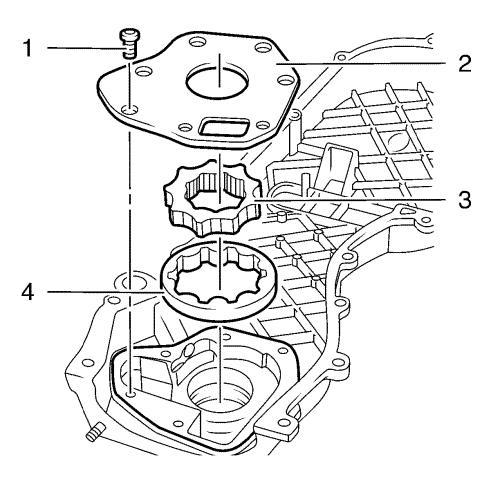

Oil Pump Assemble (without Start/Stop System)            1. Install the oil pump outer drive adapter (4). 2. Install the oil pump inner drive adapter (3). 3. Install the oil pump cap (2). Caution: Refer to Fastener Caution . 4. Install the 5 oil pump cap bolts (1) and tighten to 6 N·m (53 lb in) .            5. Install the oil pump suction pipe gasket (2). 6. Install the oil pump suction pipe (3). 7. Install the 2 oil pump suction pipe bolts (1) and tighten to 6 N·m (53 lb in) .
