Turbocharger Oil Feed Pipe Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Turbocharger Oil Feed Pipe Removal

EngineTurbocharger Oil Feed Pipe Removal

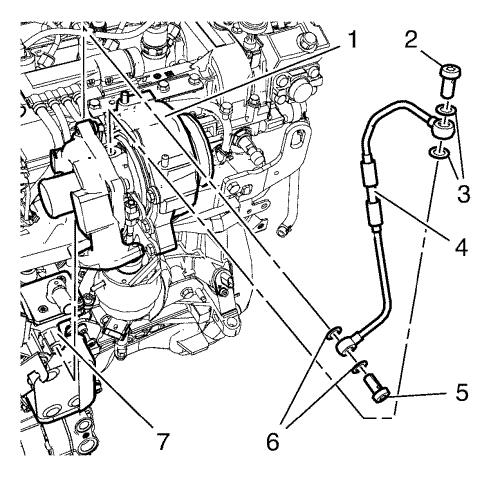

Turbocharger Oil Feed Pipe Removal            1. Remove the turbocharger oil feed pipe bolt (2) from the turbocharger (1). 2. Remove the 2 turbocharger oil feed pipe gaskets (3). 3. Remove the turbocharger oil feed pipe bolt (5) from the oil filter housing (7). 4. Remove the 2 turbocharger oil feed pipe gaskets (6). 5. Remove the turbocharger oil feed pipe (4).
