Exhaust Manifold Installation (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Exhaust Manifold Installation

EngineExhaust Manifold Installation

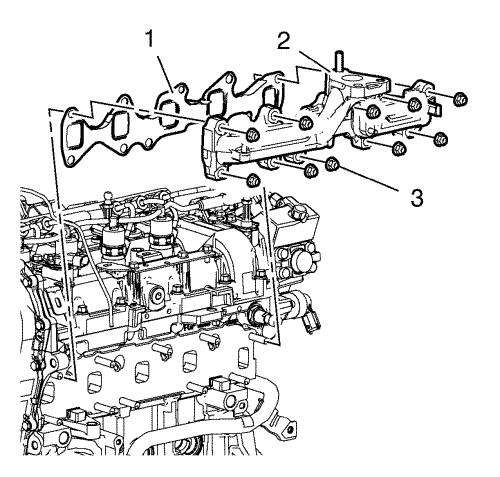

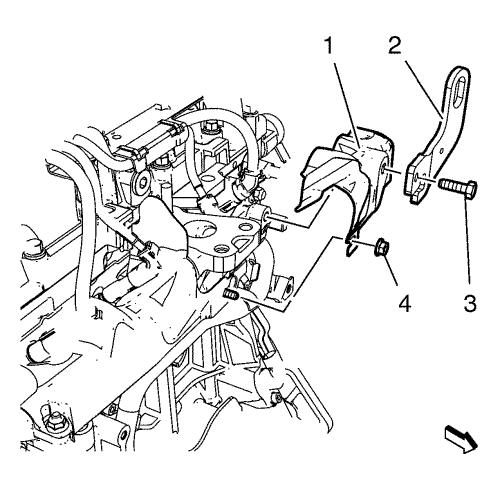

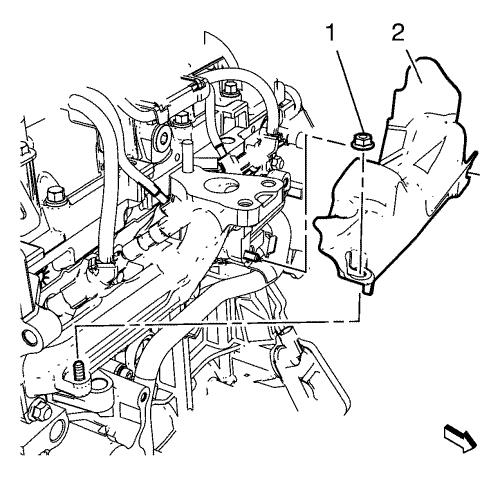

Exhaust Manifold Installation            1. Install a NEW exhaust manifold gasket (1). 2. Install the exhaust manifold (2). Caution: Refer to Fastener Caution . 3. Install the 10 exhaust manifold nuts (3) and tighten it in 2 steps:   3.1 In first step tighten to 15 N·m (11 lb ft) .   3.2 In an additional step tighten to 30° .            4. Install the exhaust manifold heat shield right side (2). 5. Install the exhaust manifold heat shield right side nut (1) and tighten to 9 N·m (80 lb in) .            6. Install the exhaust manifold heat shield left side (1). 7. Install the exhaust manifold heat shield left side nut (4) and tighten to 9 N·m (80 lb in) . 8. Install the engine lift front bracket (2). 9. Install the engine lift front bracket bolt (3) and tighten to 25 N·m (18 lb ft) .
