Glow Plug Installation
Special Tools
| • |
EN-6104
Remover/Installer Glow Plugs 12 mm |
| • |
EN-48390
Remover/Installer Glow Plugs 9 mm |
For equivalent regional tools, refer to
Special Tools .
| 1. |

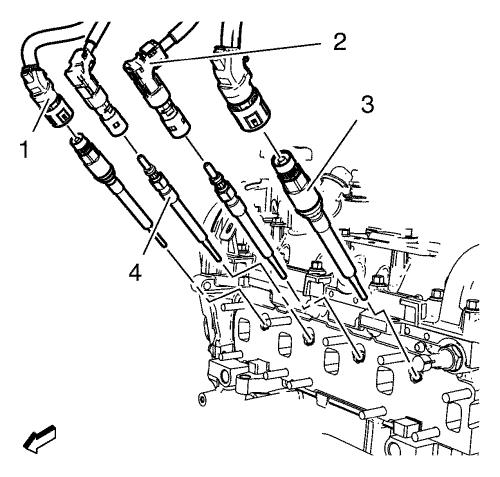

Install the 2 glow plugs with
out pressure sensor (4) to the cylinder 2 and 3 and tighten to
10 N·m (89 lb in) , using the
EN-48390 remover/installer 9 mm (0.354
in) . |
| 2. |
Install the 2 glow plugs with
pressure sensor (3) to the cylinder 1 and 4 and tighten to
10 N·m (89 lb in) , using the
EN-6104 remover/installer . |
| 3. |
Connect the 2 glow plug
connectors (2) to the glow plugs with out pressure sensor (4) at
cylinder 2 and 3. |
| 4. |
Connect the 2 glow plug
connectors (1) to the glow plugs with pressure sensor (3) at
cylinder 1 and 4. |
|
|
