Engine mechanics - 1.3L Diesel (Tappet Installation): Repair Instructions

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Tappet Installation

EngineTappet Installation

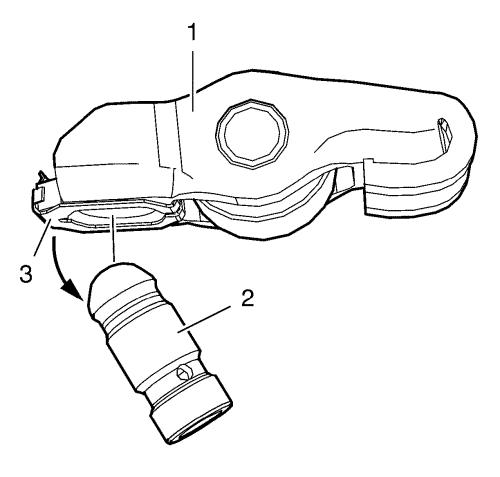

Valve Lifter Installation            Note:  Clip in the valve lifter to valve rocker arm. Mind to the centring link on retaining spring (3). 1. Install the 16 valve lifters (2) to the valve rocker arm (1). 2. Coat the 16 valve lifter with engine oil.            Note:  If the valve lifters are reused, the valve lifter must be installed in their original position. 3. Install the 16 valve rocker arms with valve lifter (1).
