Inlet Manifold Assemble (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Inlet Manifold Assemble

EngineInlet Manifold Assemble

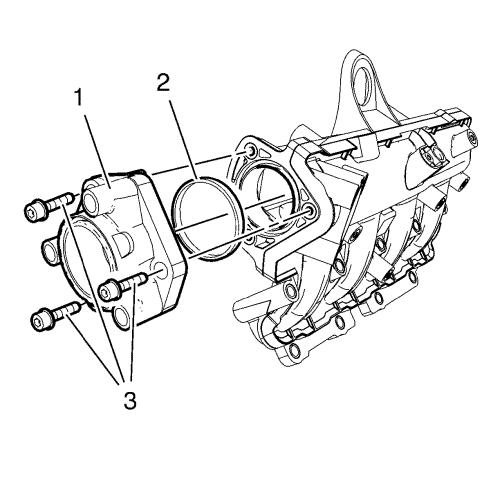

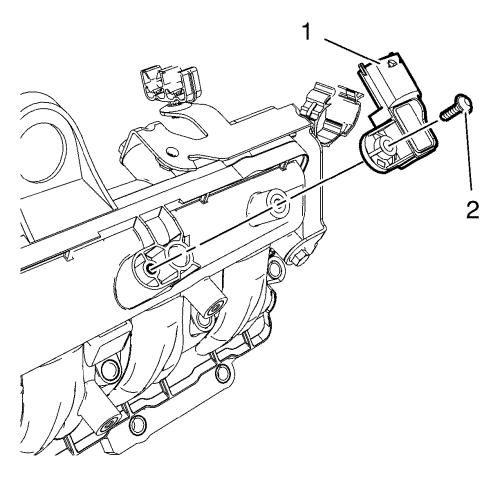

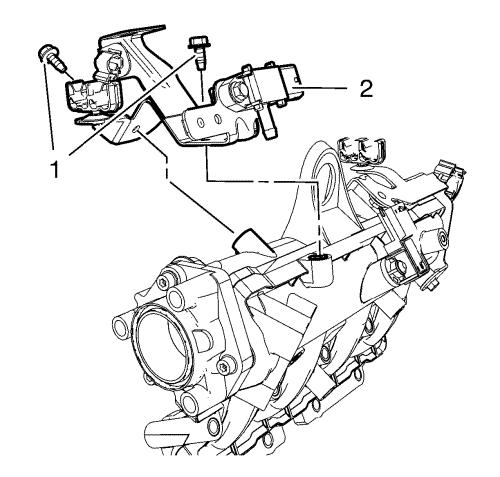

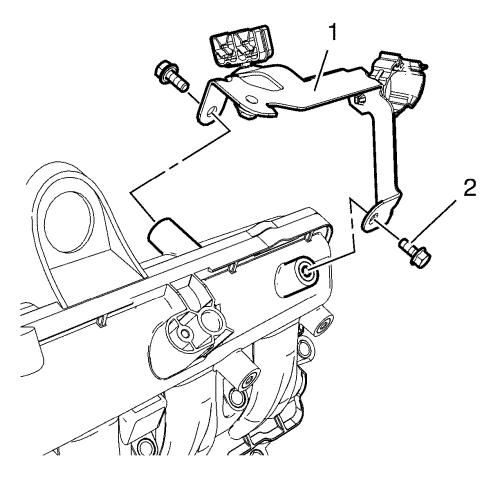

Intake Manifold Assemble            1. Install a NEW throttle body adapter seal (2). 2. Install the throttle body adapter (1). Caution: Refer to Fastener Caution . 3. Install the 3 throttle body adapter bolts (3) and tighten to 8 N·m (71 lb in) .            4. Install the manifold absolute pressure sensor (1). 5. Install the manifold absolute pressure sensor bolt (2) and tighten.            6. Install the positive crankcase ventilation oil separator hose bracket (1). 7. Install the 2 positive crankcase ventilation oil separator hose bracket bolts (2) and tighten to 9 N·m (80 lb in) .            8. Install the exhaust pressure sensor bracket (2). 9. Install the 2 exhaust pressure sensor bracket bolts (1) and tighten to 9 N·m (80 lb in) .
