Astra J

Positive Crankcase Ventilation Tube Removal

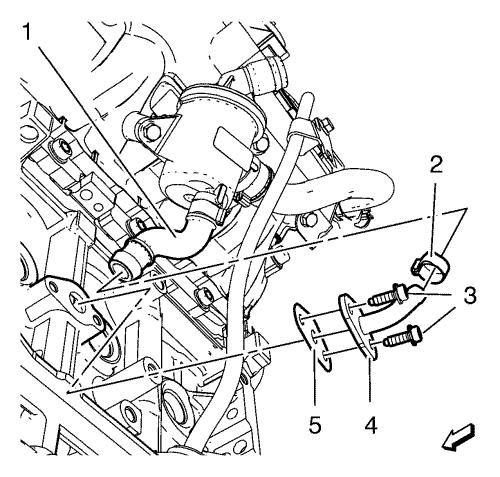

           2190506


1. Remove the 2 positive crankcase ventilation tube bolts (3)
2. Remove the positive crankcase ventilation tube gasket (5).
3. Remove the positive crankcase ventilation oil separator drain hose clamp (2).
4. Remove the positive crankcase ventilation tube (4) from the positive crankcase ventilation oil separator drain hose (1).
