Diesel Fuel Separator Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Diesel Fuel Separator Removal

EngineDiesel Fuel Separator Removal

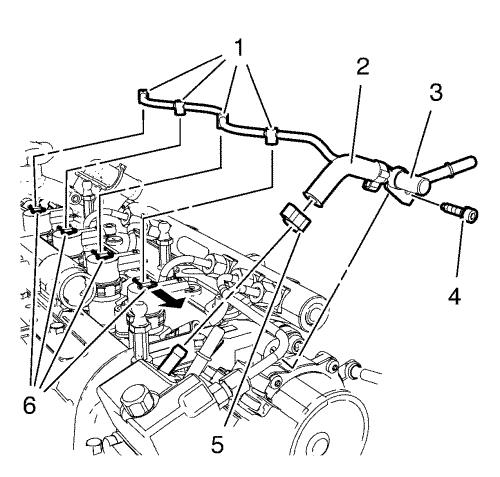

Diesel Fuel Separator Removal            1. Unclip the 4 fuel injection fuel return hose retaining clips (6) in direction of the arrow. 2. Remove the 4 fuel return hose connectors (1) from the 4 fuel injectors. 3. Remove the diesel fuel separator bolt (4). 4. Remove the fuel return hose clamp (5). 5. Remove the fuel return hose (2) from the fuel injection pump. 6. Remove the diesel fuel separator (3).
