Fuel Injector Removal (Engine mechanics - 1.3L Diesel)

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions › Fuel Injector Removal

EngineFuel Injector Removal

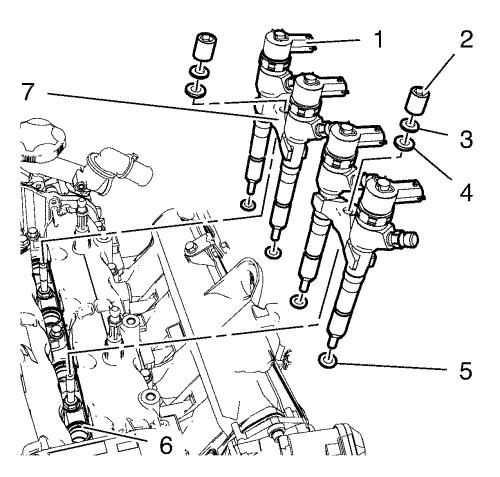

Fuel Injector Removal Special Tools •  GE-328-B   Sliding Hammer •  EN-46786   Remover •  EN-48559   Injector Protective Caps For equivalent regional tools, refer to Special Tools .            1. Remove the 2 fuel injector bracket nuts (2). 2. Remove the 2 fuel injector conical washers (3). 3. Remove the 2 fuel injector spherical washers (4). 4. Remove the 4 fuel Injectors (1) with the 2 fuel injector brackets (7). Note:  Injectors are to be removed only in pairs. If the Injectors are not removed by hand use the EN-46786   remover with the GE-328-B   sliding hammer . 5. Remove the 4 fuel injector seals (5). 6. Close the Injector nozzles with the EN-48559   protective caps . 7. Remove the 4 fuel injector gaskets (6) from the camshaft housing.
