Astra J

Oil Pump Disassemble (without Start/Stop System)

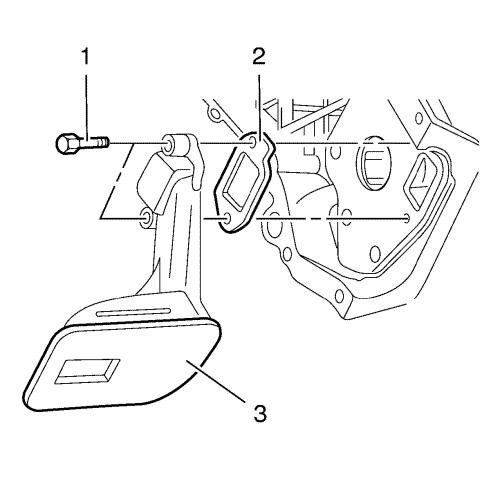

           2191844


1. Remove the 2 oil pump suction pipe bolts (1).
2. Remove the oil pump suction pipe (3).
3. Remove the oil pump suction pipe gasket (2).

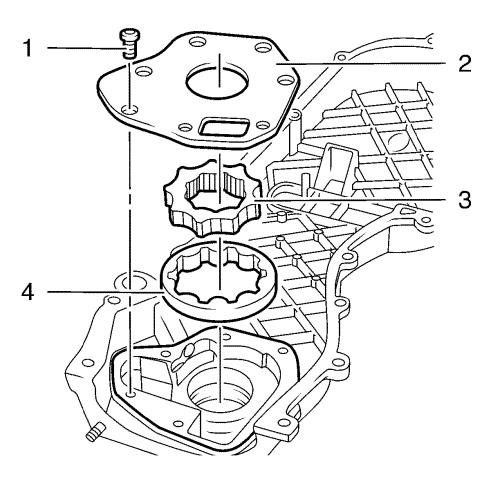

           2191845


4. Remove the 5 oil pump cap bolts (1).
5. Remove the oil pump cap (2).
6. Remove the oil pump inner drive adapter (3).
7. Remove the oil pump outer drive adapter (4).

           2191847


8. Remove the oil pump seal (1).
