Engine Block Assemble

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Engine Block Assemble

EngineEngine Block Assemble

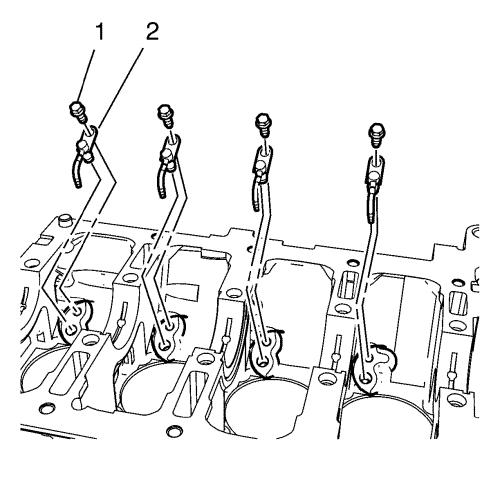

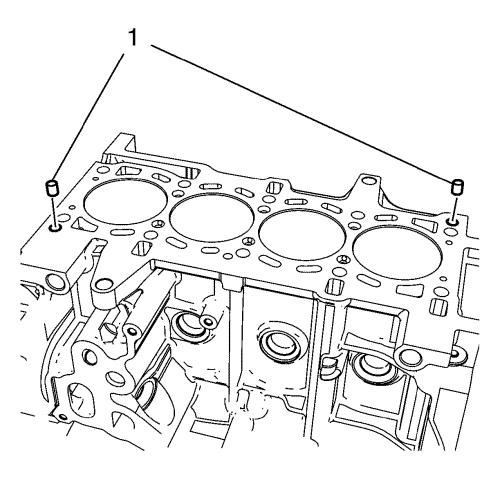

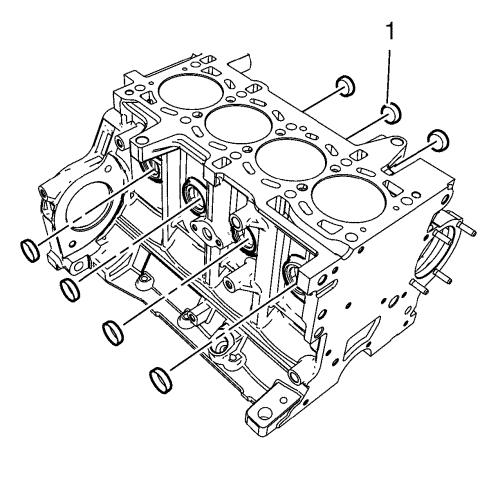

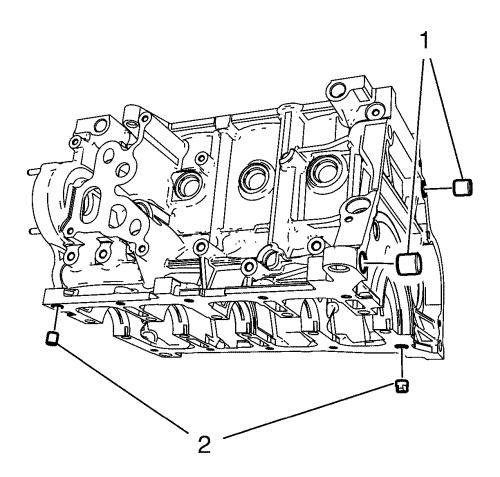

Engine Block Assemble            1. Install the 4 piston oil nozzles (2). Caution: Refer to Fastener Caution . 2. Install the 4 piston oil nozzle bolts (1) and tighten to 9 N·m (80 lb in)            Note:  Ensure the NEW engine block core hole plugs are installed to the proper depth. 3. Install the 7 NEW engine block core hole plugs (1).            4. Install the 2 cylinder head location pins (1).            5. Install the 2 transmission locating pins (1). 6. Install the 2 lower crankcase location pins (2).
