Inlet Manifold Disassemble

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Inlet Manifold Disassemble

EngineInlet Manifold Disassemble

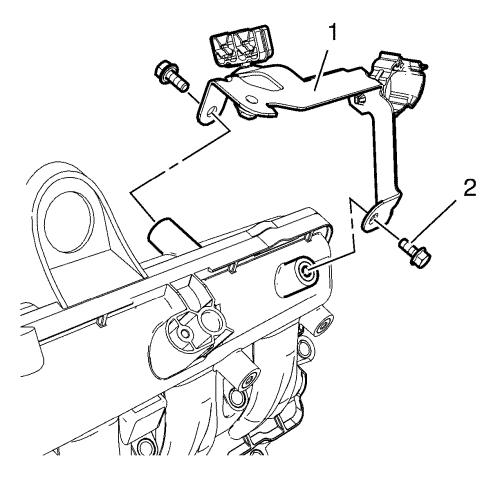

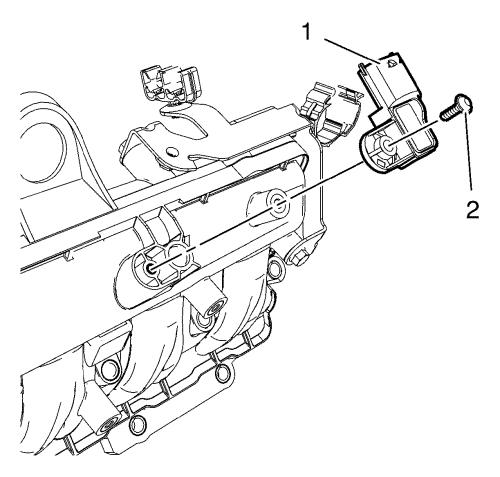

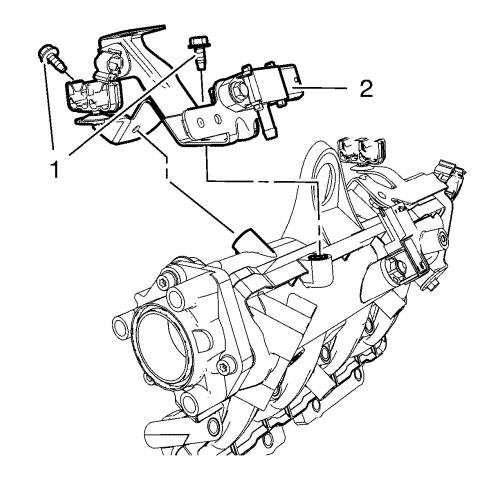

Intake Manifold Disassemble            1. Remove the 2 exhaust pressure sensor bracket bolts (1). 2. Remove the exhaust pressure sensor bracket (2).            3. Remove the 2 positive crankcase ventilation oil separator hose bracket bolts (2). 4. Remove the positive crankcase ventilation oil separator hose bracket (1).            5. Remove the manifold absolute pressure sensor bolt (2). 6. Remove the manifold absolute pressure sensor (1).            7. Remove the 3 throttle body adapter bolts (3). 8. Remove the throttle body adapter (1). 9. Remove the throttle body adapter seal (2).
