Sump Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Sump Removal

EngineSump Removal

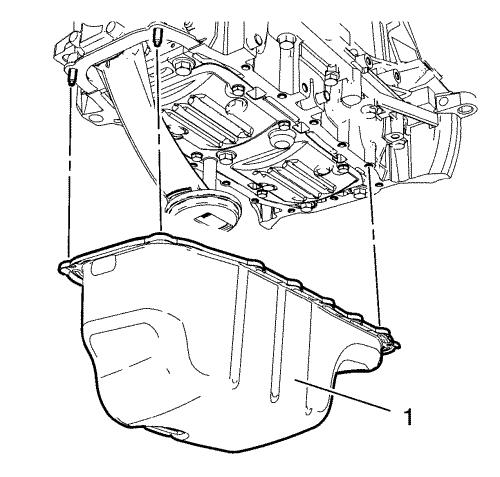

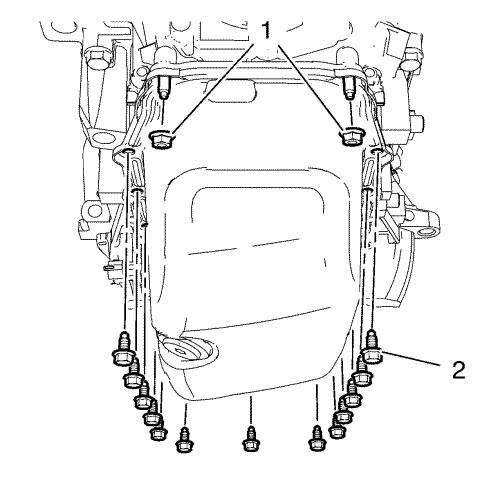

Oil Pan Removal Special Tools EN-37228   Separation Tool For equivalent regional tools, refer to Special Tools .            Note:  For vehicles with air conditioning 1. Remove the 4 air conditioning compressor bracket bolts (2). 2. Remove the air conditioning compressor bracket (1).            3. Remove the 4 transmission support brace bolts (2). 4. Remove the transmission support brace (1).            5. Remove the 2 oil pan nuts (1). 6. Remove the 13 oil pan bolts (2).            7. Loosen carefully the oil pan (2) from the lower cylinder block with the EN-37228   separation tool (1).            8. Remove the oil pan (1).
