Cylinder Head Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Cylinder Head Removal

EngineCylinder Head Removal

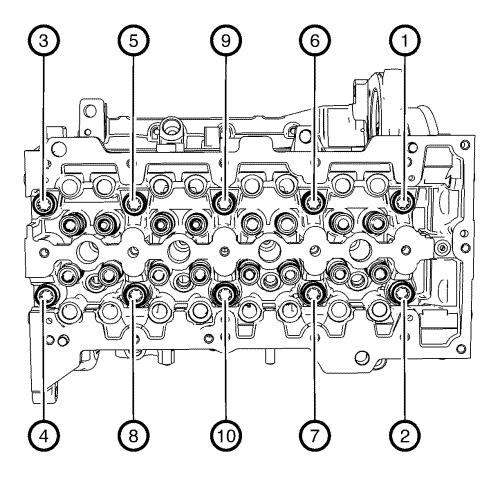

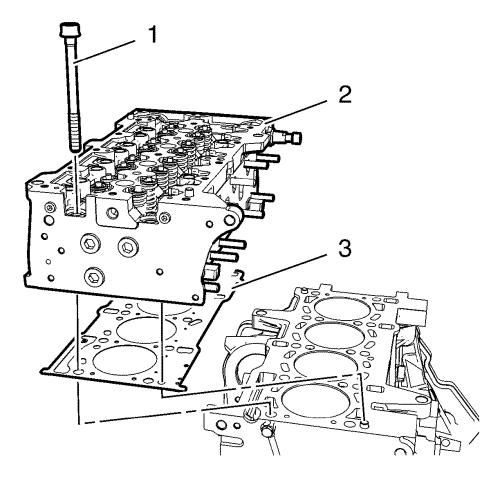

Cylinder Head Removal            1. Loosen the 10 cylinder head bolts in sequence as shown.            2. Remove the 10 cylinder head bolts (1). 3. Remove the cylinder head (2). 4. Remove the cylinder head gasket (3).
