Generator Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Generator Removal

EngineGenerator Removal

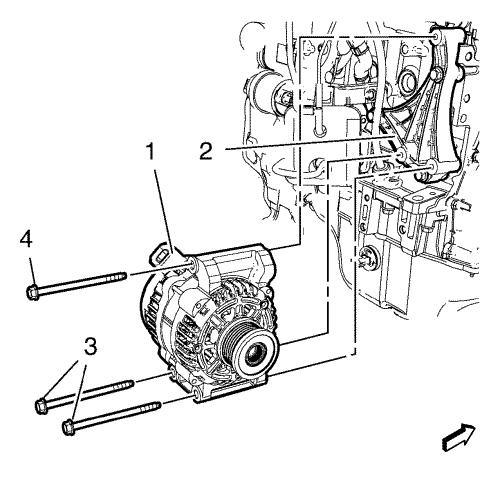

Generator Removal            1. Remove the upper generator bolt (4). 2. Remove the 2 lower generator bolts (3). 3. Remove the generator (1) from the generator bracket (2).
