Camshaft Housing Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Camshaft Housing Removal

EngineCamshaft Housing Removal

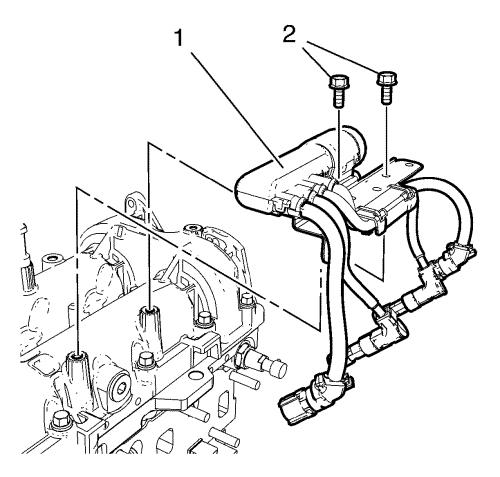

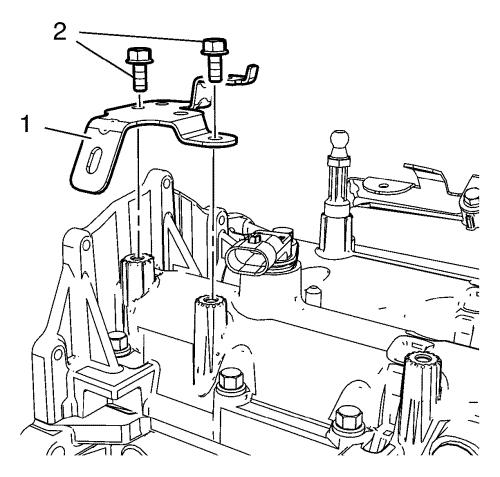

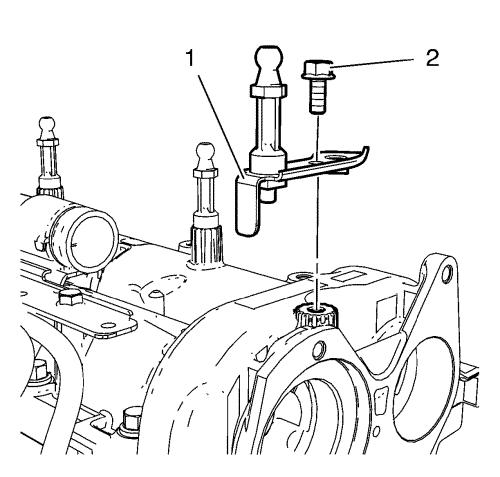

Camshaft Housing Removal            1. Remove the engine control module wiring harness bracket bolt (2). 2. Remove the engine control module wiring harness bracket (1) left side.            3. Remove the 2 engine control module wiring harness bracket bolts (2). 4. Remove the engine control module wiring harness bracket (1) right side.            5. Remove the 2 glow plug wiring harness bracket bolts (2). 6. Remove the glow plug wiring harness bracket (1).            Note:  Take note that there are different bolt lengths. 7. Remove the 16 camshaft housing bolts (2). 8. Remove the 2 camshaft housing studs (1). 9. Remove the camshaft housing (3). 10. Remove the camshaft housing gasket (4).
