Glow Plug Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Glow Plug Removal

EngineGlow Plug Removal

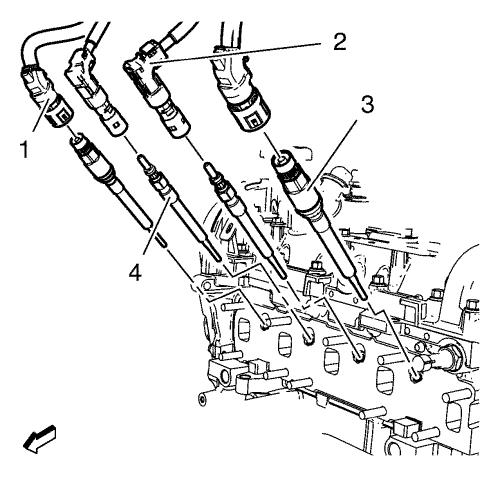

Glow Plug Removal Special Tools •  EN-6104   Remover/Installer Glow Plugs 12 mm •  EN-48390   Remover/Installer Glow Plugs 9 mm For equivalent regional tools, refer to Special Tools .            1. Disconnect the 2 glow plug connectors (1) from the glow plugs with pressure sensor (3) at cylinder (1, 4). 2. Disconnect the 2 glow plug connectors (2) from the glow plugs with out pressure sensor (4) at cylinder (2, 3). 3. Remove the 2 glow plugs with pressure sensor (3) from the cylinder (1, 4), using the EN-6104   remover/installer . 4. Remove the 2 glow plugs with out pressure sensor (4) from the cylinder (2, 3), using the EN-48390   remover/installer .
