Inlet Manifold Removal

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Inlet Manifold Removal

EngineInlet Manifold Removal

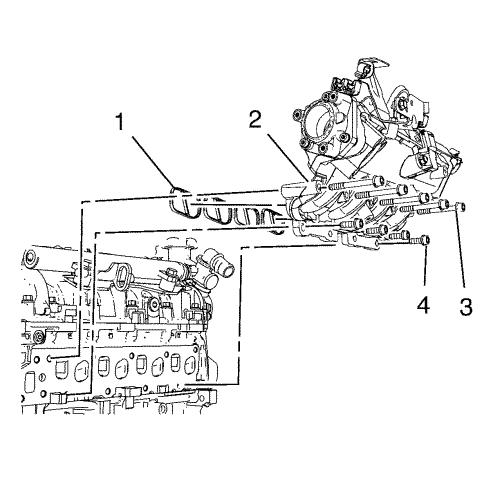

Intake Manifold Removal            1. Remove the 5 intake manifold upper bolts (3). 2. Remove the 4 intake manifold lower bolts (4). 3. Remove the intake manifold (2). 4. Remove the 4 intake manifold gaskets (1).
