Astra J
Engine
Engine mechanics - 1.3L Diesel
Repair Instructions - Off Vehicle
Vacuum Pump Removal
Vacuum Pump Removal
1.

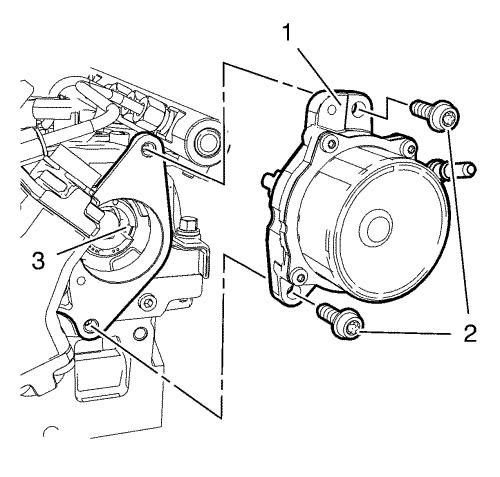

Remove the 2 vacuum pump bolts (2).
2.
Remove the vacuum pump (1).
Note:
Do not tilt the vacuum pump actuator at the timing gear groove (3).
3.
Remove the vacuum pump gasket.
