Engine mechanics - 1.3L Diesel › Repair Instructions - Off Vehicle › Engine Block Disassemble

EngineEngine Block Disassemble

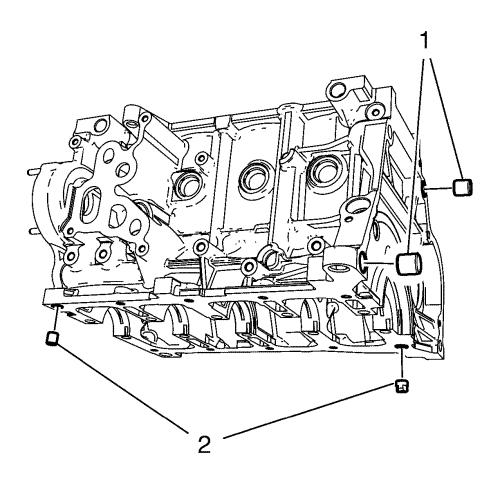

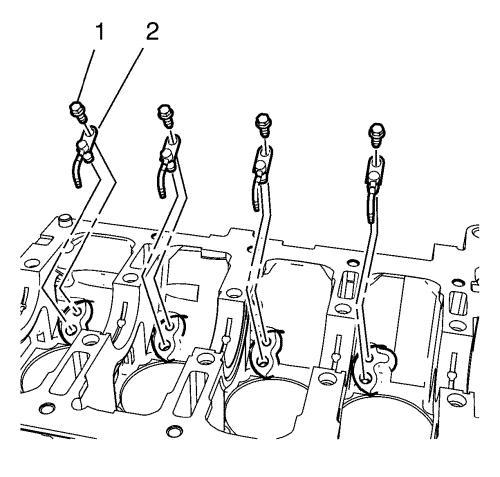

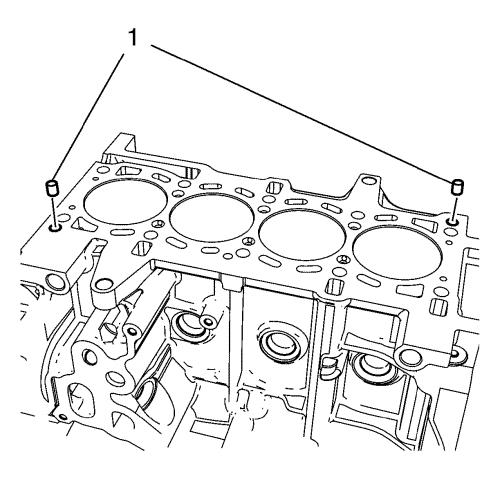

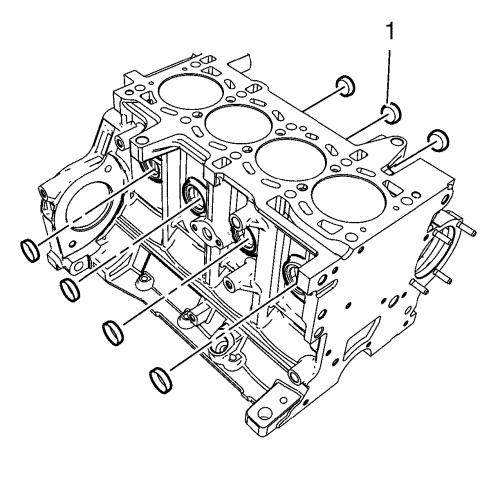

Engine Block Disassemble            1. Remove the 2 transmission locating pins (1). 2. Remove the 2 lower crankcase location pins (2).            3. Remove the 2 cylinder head location pins (1).            4. Remove the 7 engine block core hole plugs (1).            5. Remove the 4 piston oil nozzle bolts (1). 6. Remove the 4 piston oil nozzles (2).
