Golf Mk5

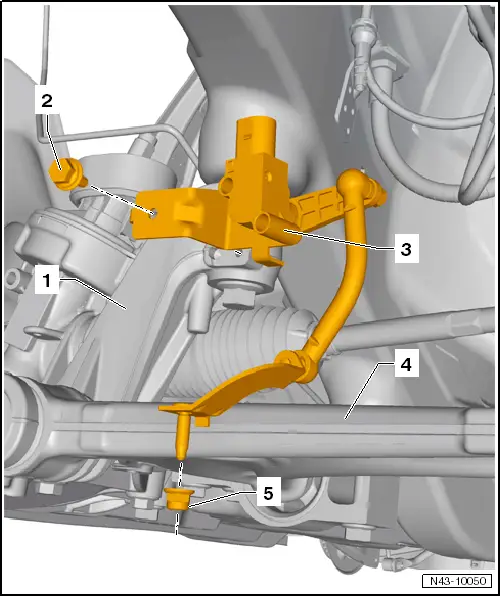

| Assembly overview: front left vehicle level sender -G78- |
Note| t | The front left vehicle level sender -G78/- is only available as a replacement part complete with coupling rod and upper and lower retaining plates. |
| t | Replace with subframe installed. |
| 1 - | Subframe |
| 2 - | Bolt |
| q | M6 x 16 |
| q | 9 Nm |
| 3 - | Front left vehicle level sender -G78- and front right vehicle level sender -G289- |
| q | Complete with attachments |
| q | Lever -arrow- must face outwards |
| q | Removing and installing → Chapter. |
| q | Following renewal, basic settings for headlight must be performed. |
| Basic setting of headlights → "Guided fault-finding" function of vehicle diagnosis, testing and information system VAS 5051 |
| 4 - | Suspension link |
| 5 - | Nut |
| q | 9 Nm |
| q | Self-locking |
| q | Always renew after removing. |
