Polo Mk4
|
|

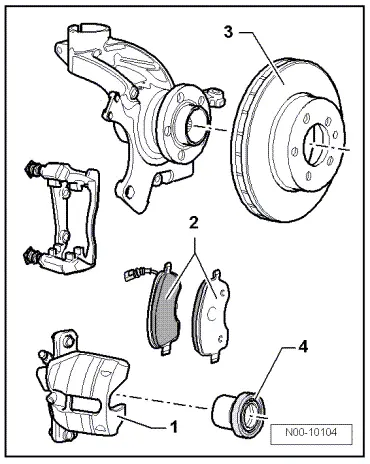

| pos. | PR number | 1LN / 1ZH | ||
| (with power steering) | ||||
| Brake cylinder | Ø mm | 20,64 | ||
| Servo brake | Ø in | 8,544'' | ||
| 1 | Brake caliper | C54-FN3 (15”) | ||
| 2 | Brake pad, thickness | mm | 13,64 | |
| 3 | Brake disc | Ø mm | 288 | |
| Brake disc, thickness | mm | 25 | ||
| 4 | Brake caliper, plunger | Ø mm | 54 | |
