Checking gear oil

Make

Volkswagen

Model

Polo Mk5

Section

5-speed manual gearbox 02R › Gearbox mechanics,operation, construction,diff. › Checking gear oil

Power transmissionChecking gear oil

Checking gear oil Gearbox oil → Electronic parts catalogue (ETKA) –  If insulation tray is installed below engine and gearbox, remove it.

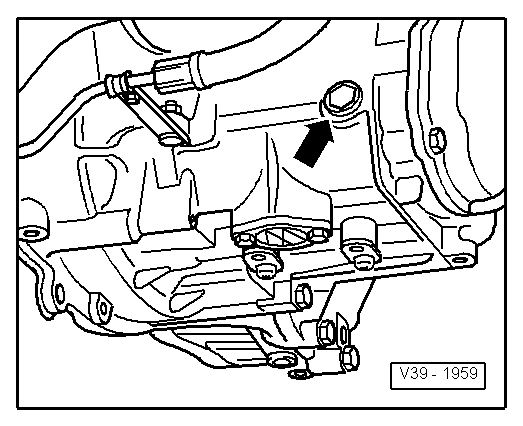

–  To check gear oil, remove oil plug -arrow-. Oil level is correct when gearbox is filled to lower edge of filler hole. –  Tighten bolt -arrow- to specified torque → Item. When filling with oil, note the following: –  Remove oil plug -arrow-. –  Fill with gear oil to lower edge of filler hole. –  Screw in plug -arrow-. –  Start engine, engage gear and allow gearbox to turn for approx. 2 minutes. –  Stop engine and remove plug -arrow-. –  Top up with gear oil to lower edge of filler hole. –  Tighten bolt -arrow- to specified torque → Item.

04 Transmission
