Power transmissionSynchro-rings
| t
| Do not interchange. When reusing synchro-rings, always fit to the same synchromeshed gear. |
| t
| Check for wear and renew if necessary. |
|
|
|
| t

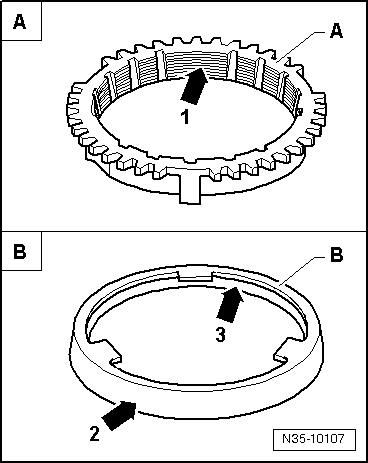

| Check grooves -arrow 1- of synchro-ring -A- and inner ring for flat spots (worn grooves). |
| t
| If synchro-rings are coated, coating must not be damaged. |
| t
| If an intermediate ring -B- is installed, check the outer friction surface -arrow 2- and inner friction surface -arrow 3- of this intermediate ring for »scoring«, »signs of abnormal wear« and »blue discolouration (due to overheating)«. |
| t
| Check cone of synchromeshed gear for »scoring« and »signs of abnormal wear«. |
| t
| Moisten synchromesh mechanism with gear oil before installing. |
|
|
|
