Polo Mk5
| Repairing clutch release mechanism |
| 1 - | Release bearing |
| q | Remove and install together with clutch release lever → Item and guide sleeve → Item → Fig. to → Fig. |
| q | Do not wash out bearing; wipe only |
| q | Renew noisy bearings |
| 2 - | Bolt, 5 Nm + turn 90° further |
| q | Always renew |

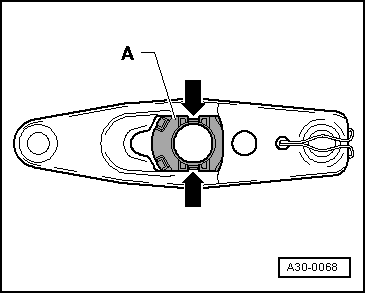

| 3 - | Clutch release lever |
| q | Remove and install together with release bearing → Item and guide sleeve → Item → Fig. to → Fig. |
| q | Remove old grease |
| 4 - | Retaining spring |
| q | Secure to clutch release lever |

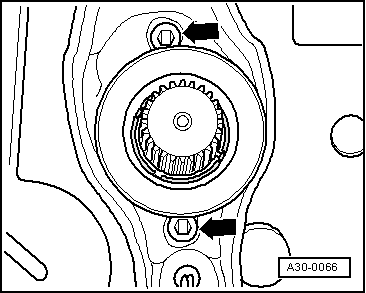

| 5 - | Guide sleeve |
| q | Remove and install together with release bearing → Item and clutch release lever → Item → Fig. to → Fig. |
| 6 - | Input shaft seal |
| q | Renewing → Item |
| 7 - | Ball stud, 20 Nm |
| q | Remove old grease from contact surface of clutch release lever |
| q | Lubricate with grease -G 000 100- |
| 8 - | Gearbox |
| 9 - | Hexagon bolt, 20 Nm |
| 10 - | Bracket |
| q | Not fitted in all vehicles |
| 11 - | Slave cylinder |
| q | Removing and installing → Chapter |
|
|
|
|
