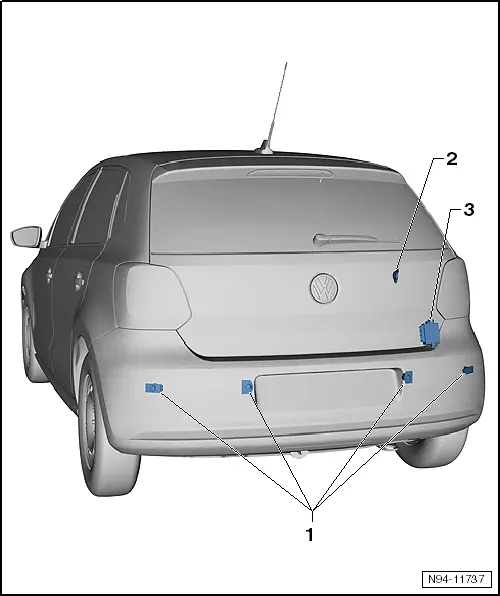

Assembly overview

1 -	Parking aid senders in rear bumper cover

q	Rear left parking aid sender -G203-

q	Rear left centre parking aid sender -G204-

q	Rear right centre parking aid sender -G205-

q	Rear right parking aid sender -G206-

q	Removing and installing up to 07/2009 → Chapter.

q	Removing and installing from 08/2009 onwards → Chapter.

q	Replacing individual sender retainers up to 07/2009 → Chapter.

q	Replacing individual sender retainers as of 08/2009 → Chapter.

q	Replacing parking aid senders → Chapter

2 -	Parking aid warning buzzer -H15-

q	Behind right wheel housing trim

q	Removing and installing → Chapter

q	Adapting functions of warning buzzer → Chapter

3 -	Parking aid control unit -J446-

q	Behind right side luggage compartment trim

q	Removing and installing → Chapter

q	Final control diagnosis → Chapter.

q	Adaption → Chapter

q	Coding → Chapter
