R32 4Motion V6-3.2L (CBRA) (2008)
Seals and Gaskets: Service and Repair
Seal Between Bevel Box and Transmission
Seal between Bevel Box and Transmission (All Wheel Drive) - 02E, 6 Speed DSG A/T AWD
Special tools, testers and auxiliary items required
^
Pulling hook T20143
^
Used oil collection and extraction device V.A.G 1782
^
Thrust piece T10243
Procedure
-
Remove bevel gear transfer case.
Place the used oil collection and extraction device V.A.G 1782 under the transmission.
-
Pry out sealing ring on transmission with pulling hook T20143/1 or T20143/2.
-

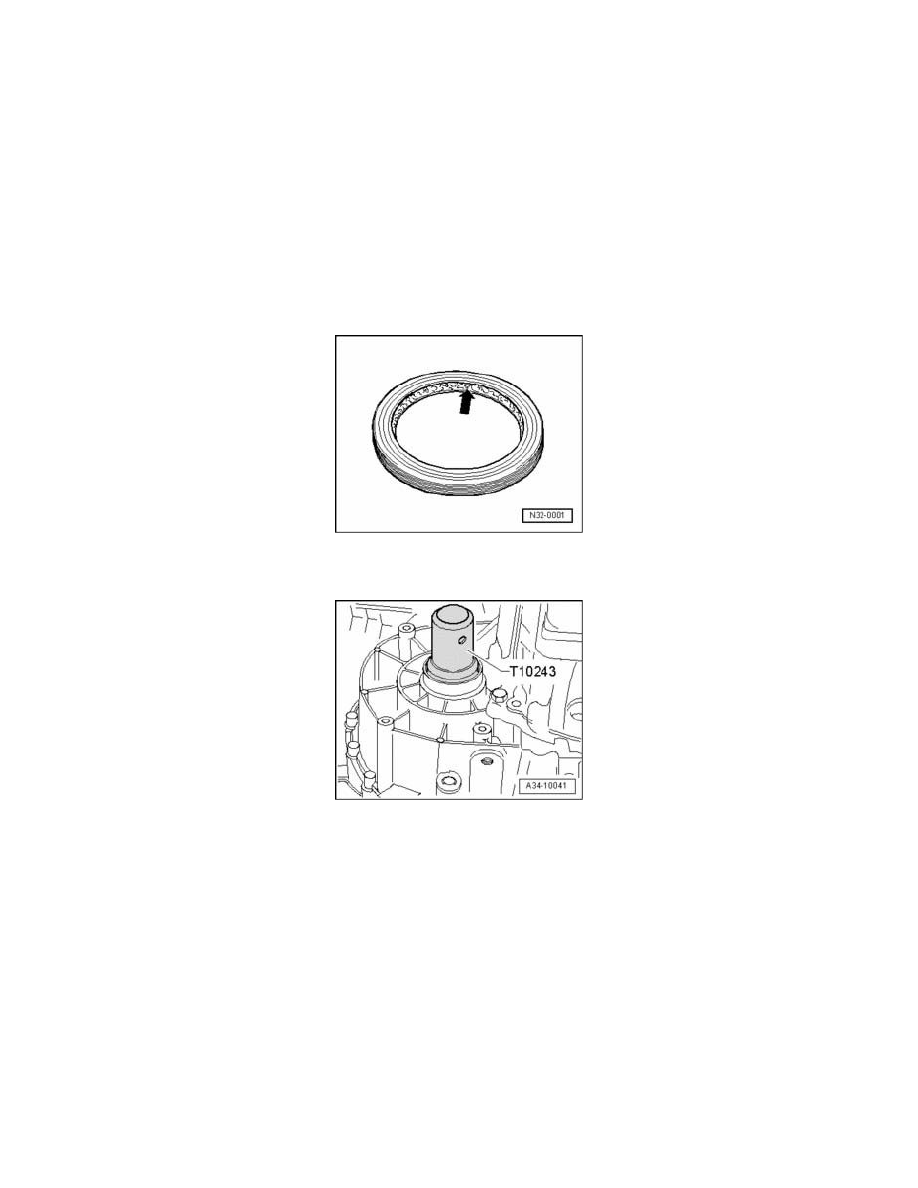

Fill area between sealing lip and dust lip -arrow- halfway with sealing grease G 052 128 A1.
-
Lightly lubricate outer circumference of sealing ring.
-
Carefully drive in sealing ring as far as stop using thrust piece T10243.
-
Install bevel gear transfer case.
