TSX L4-2.4L (2005)

Page 1
background image

Water Pump: Specifications

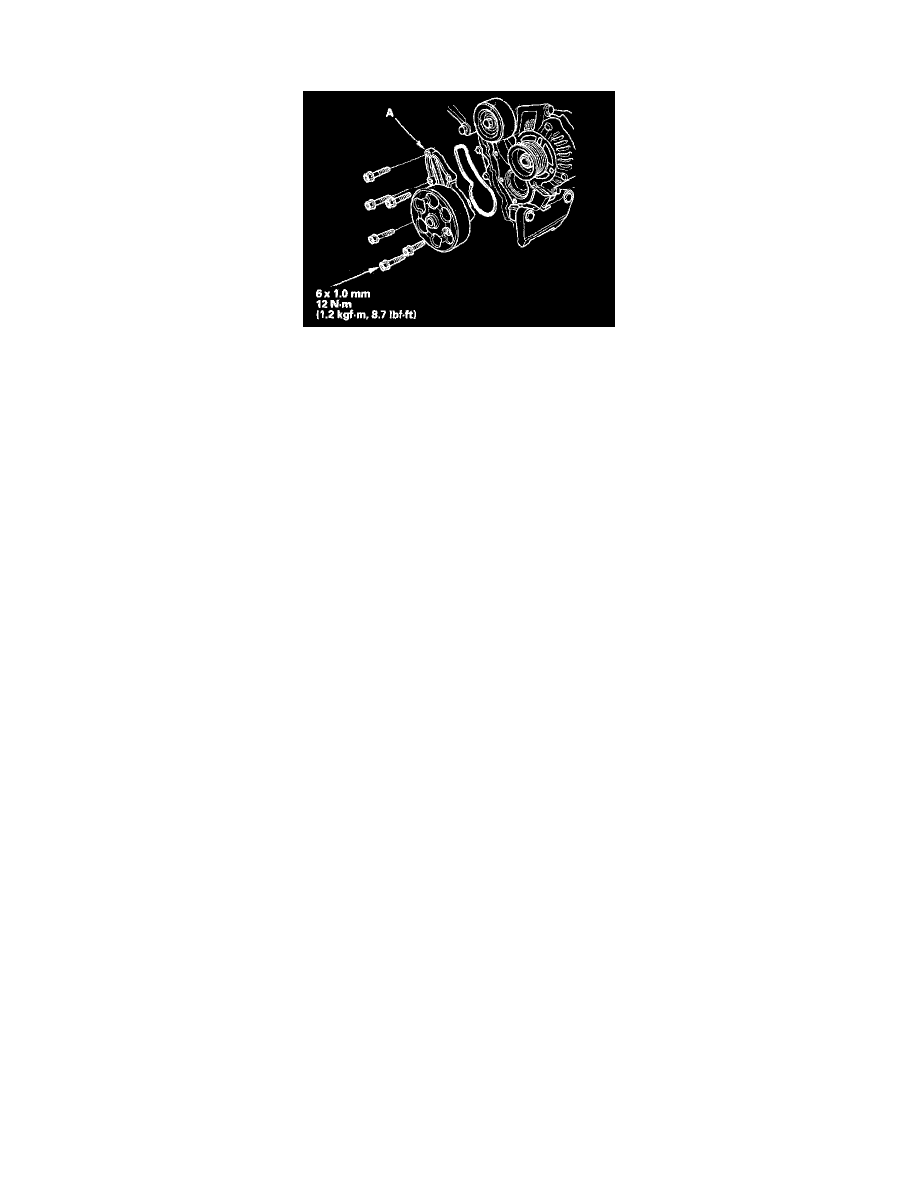

Water pump

Remove the six bolts securing the water pump, then remove the water pump (A).
Install the water pump with new O-rings in the reverse order of removal.
