Components and connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Climate Control › Components and connectors
145 electrical system diagnosisComponents and connectors

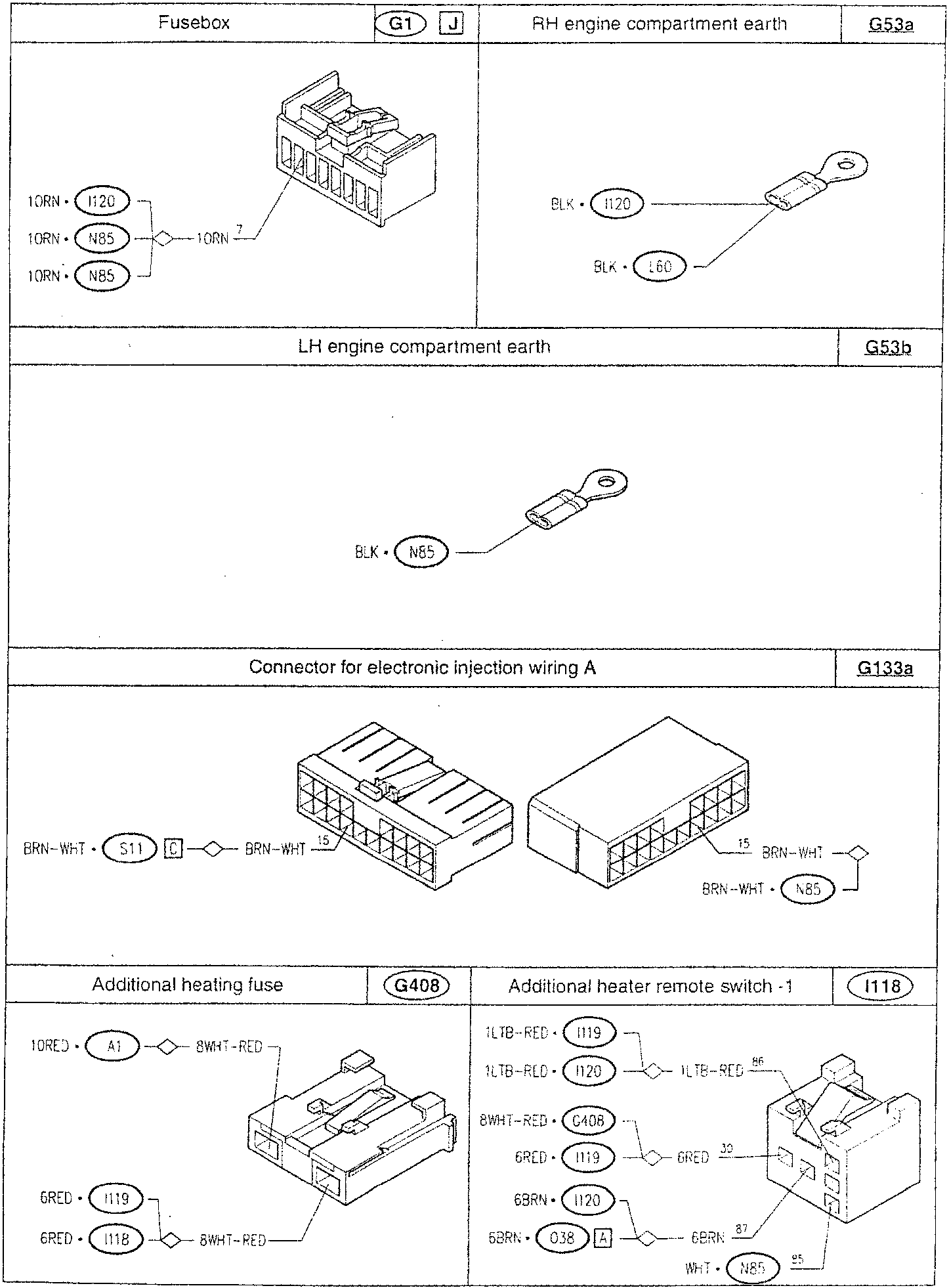

COMPONENTS AND CONNECTORS
| F1 Fusebox | G1 J | RH engine compartment earth | G53a |
|---|---|---|---|
|
|
|
|
| Additional heating fuse | G408 | Additional heater remote switch -1 | I118 |
10RED • A1 — 8WHT-RED
6RED • I119 — 8WHT-RED
6RED • I118 — 8WHT-RED
1LTB-RED • I119 — 1LTB-RED
1LTB-RED • I120 — 1LTB-RED
8WHT-RED • G408 — 6RED
6RED • I119 — 6RED
6BRN • I120 — 6BRN
6BRN • 038 A — 6BRN
WHT • N85
