145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont’d)

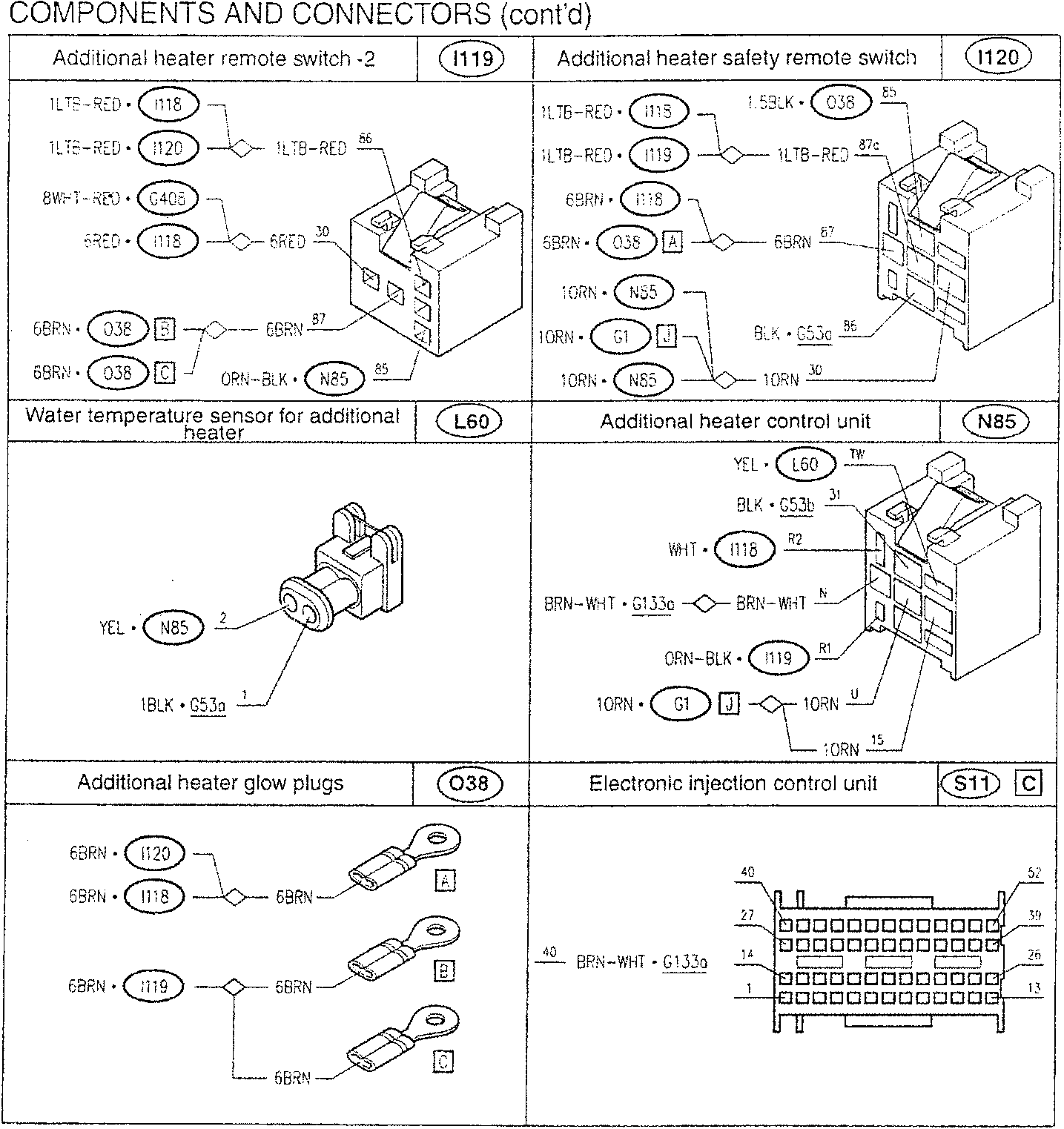

COMPONENTS AND CONNECTORS (cont’d)

Additional heater remote switch -2	I119	Additional heater safety remote switch	I120
1LTB-RED • I118	1LTB-RED • I120	1LTB-RED • I113	1.5BLK • O38 85
1LTB-RED • I120	1LTB-RED 66	1LTB-RED • I119	1LTB-RED 87c
8WHT-RED • G40S	6RED • I118	6BRN • I118	6BRN • O38 A 67
6RED • I118	6RED 30	6BRN • O38	6BRN 67
6BRN • O38 B	6BRN 87	1ORN • NS5	BLK • G53a 86
6BRN • O38 C	ORN-BLK • N85 85	1ORN • G1 J	1ORN 30
Water temperature sensor for additional heater	L60	Additional heater control unit	N85
YEL • N85 2	1BLK • G53a 1	YEL • L60 TW	BLK • G53b 31
	WHT • I118 R2
	BRN-WHT • G133a BRN-WHT N
	ORN-BLK • I119 R1
	1ORN • G1 J 10RN U
	10RN 15
	Additional heater glow plugs	O38	Electronic injection control unit	S11 C
	6BRN • I120	6BRN A	40 BRN-WHT • G133a	40 52
	6BRN • I118	6BRN B		27 39
	6BRN • I119	6BRN C		14 26
			1 13
