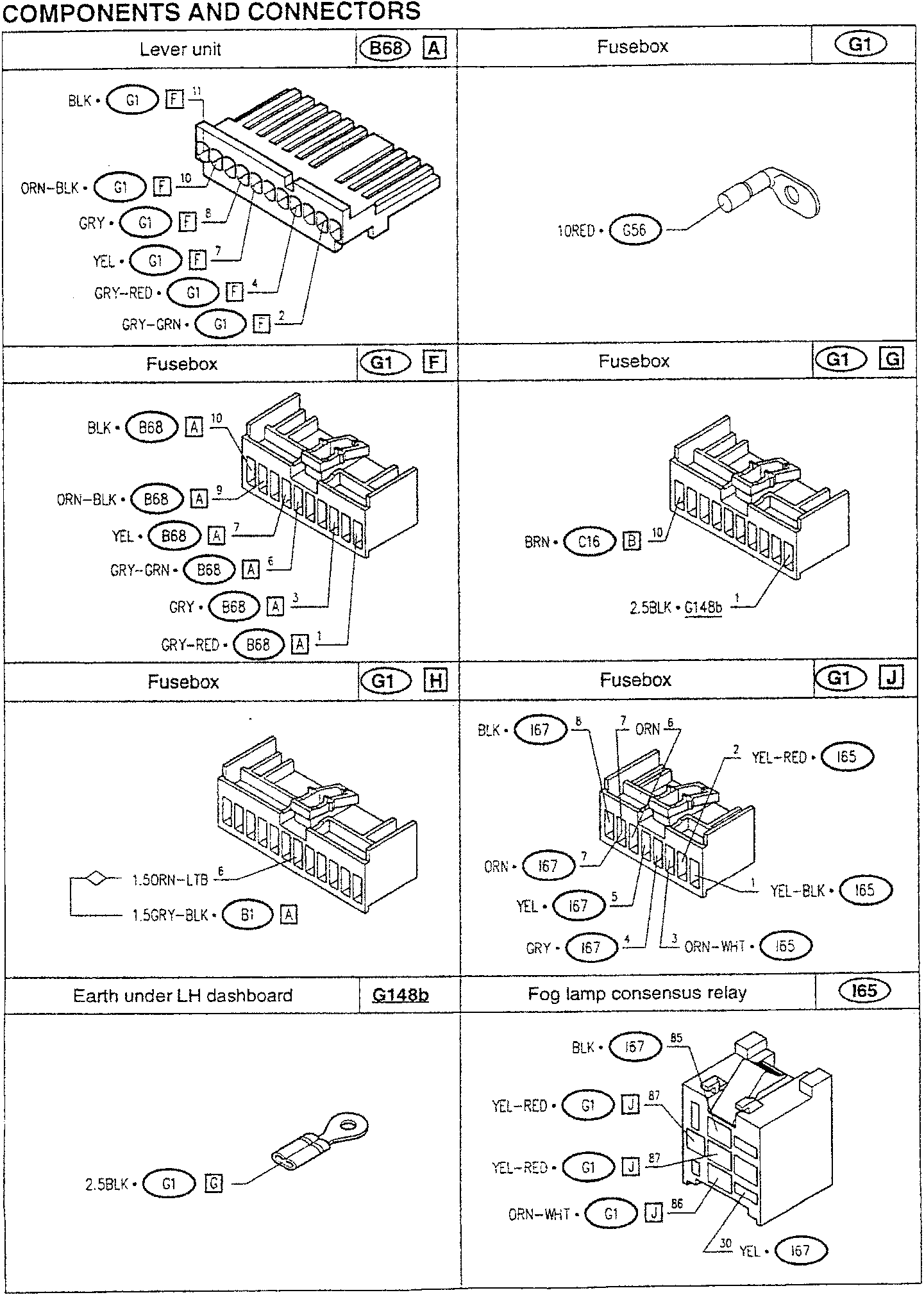

COMPONENTS AND CONNECTORS

Lever unit	B68 A	Fusebox	G1
BLK • G1 F 11	ORN-BLK • G1 F 10	GRY • G1 F 8	YEL • G1 F 7	GRY-RED • G1 F 4	GRY-GRN • G1 F 2	10RED • G56
						10RED • G56

Fusebox	G1 F	Fusebox	G1 G
BLK • B68 A 10	ORN-BLK • B68 A 9	YEL • B68 A 7	GRY-GRN • B68 A 6	GRY • B68 A 3	GRY-RED • B68 A 1	BRN • C16 B 10	2.5BLK • G148b 1

Fusebox	G1 H	Fusebox	G1 J
1.5ORN-LTB 6	1.5GRY-BLK • B1 A	BLK • I67 6	ORN • I67 7	YEL-RED • I65 2	YEL-BLK • I65 1	YEL • I67 5	GRY • I67 4	ORN-WHT • I65 3

Earth under LH dashboard	G148b	Fog lamp consensus relay	I65
2.5BLK • G1 G	BLK • I67 85	YEL-RED • G1 J 87	YEL-RED • G1 J 87	ORN-WHT • G1 J 86	30 YEL • I67
