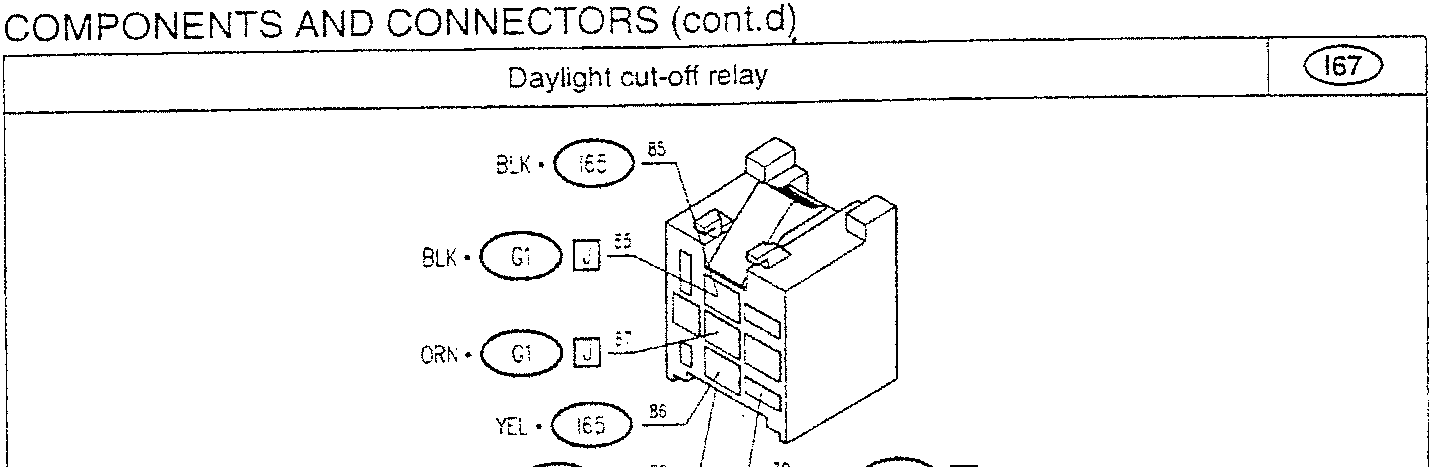

Daylight cut-off relay

(167)

FAULT-FINDING TABLE

Note: here only the faults concerning the logic involving the daylights is considered. For faults concerning the circuits of the sidelights, foglamps, rear fog guards, etc., refer to the FAULT-FINDING tables of the appropriate sections.

Fault	Component to be checked
	G1 (*)	I67	I65
With ignition key turned: engagement of sidelights and low beams	●	●
With sidelights on: engagement of sidelights and foglamps and low beams cut off	●	●	●
With low beam headlamps on: engagement of low beams, rear fog guards and fog lamps cut off	●		●

(*) Specific bridge, only for Markets with Daylights. For the other Markets a different bridge is installed: for further details, see the "Fusebox" section.
