145 electrical system diagnosisFaultfinding table · page 2 of 3

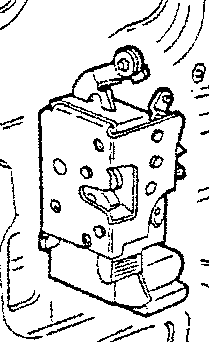

Door lock gear motor P10 - P11
| SPECIFICATIONS | |
|---|---|
| door closed | continuity between pin 5 and 6 |
| door open | a.c. between pin 5 and 6 |
| lock command | cuts off continuity between pin 5 and 3 and establishes it between pin 5 and 4 |
| release command | cuts off continuity between pin 5 and 4 and establishes it between pin 5 and 3 |
| motor operation | applying 12V between pins 1 and 2 |
