145 electrical system diagnosisFaultfinding table · page 1 of 2
FAULTFINDING TABLE
| Failure | Component to be checked | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F11 | E16 | F19 (A) | G382 (B) | E10a | E10b | I25 | I17 | N25 (*) | I65 (B) | B68 | C16 (**) | C10 (*) |
| Rear fog guard | ● | ● | ● | ● | ● | ● | ||||||
| Fog guard warning light | ● | ● | ● | |||||||||
| Both fog lights | ● | ● | ● | ● | ||||||||
| RH fog light | ● | |||||||||||
| LH fog light | ● | |||||||||||
| Fog light warning light | ● | ● | ● | |||||||||
| Lighting. fog light switch (with side lights on) | ● | |||||||||||
(*) The instrument cluster C10 cannot be repaired. Therefore, in the event of a failure it is not possible to change the single warning light and a new complete cluster must be fitted.
(**) The "Check Panel" display C16 cannot be repaired. Therefore it is not possible to change the fog light switch and a new complete Check Panel must be fitted.
(A) Only fusebox "A"
(B) Only fusebox "B"
(•) Only from Model Year '97
CHECKING COMPONENTS

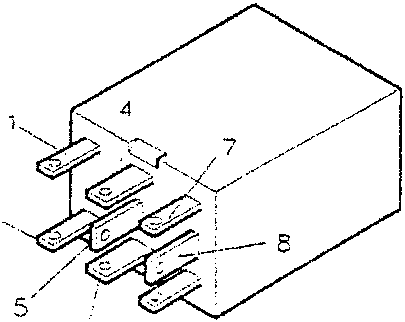

Rear fog guard electronic device N25
Check the device: see TEST A
