Location of components
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Front and Rear Foglights › Location of components
145 electrical system diagnosisLocation of components · page 1 of 2

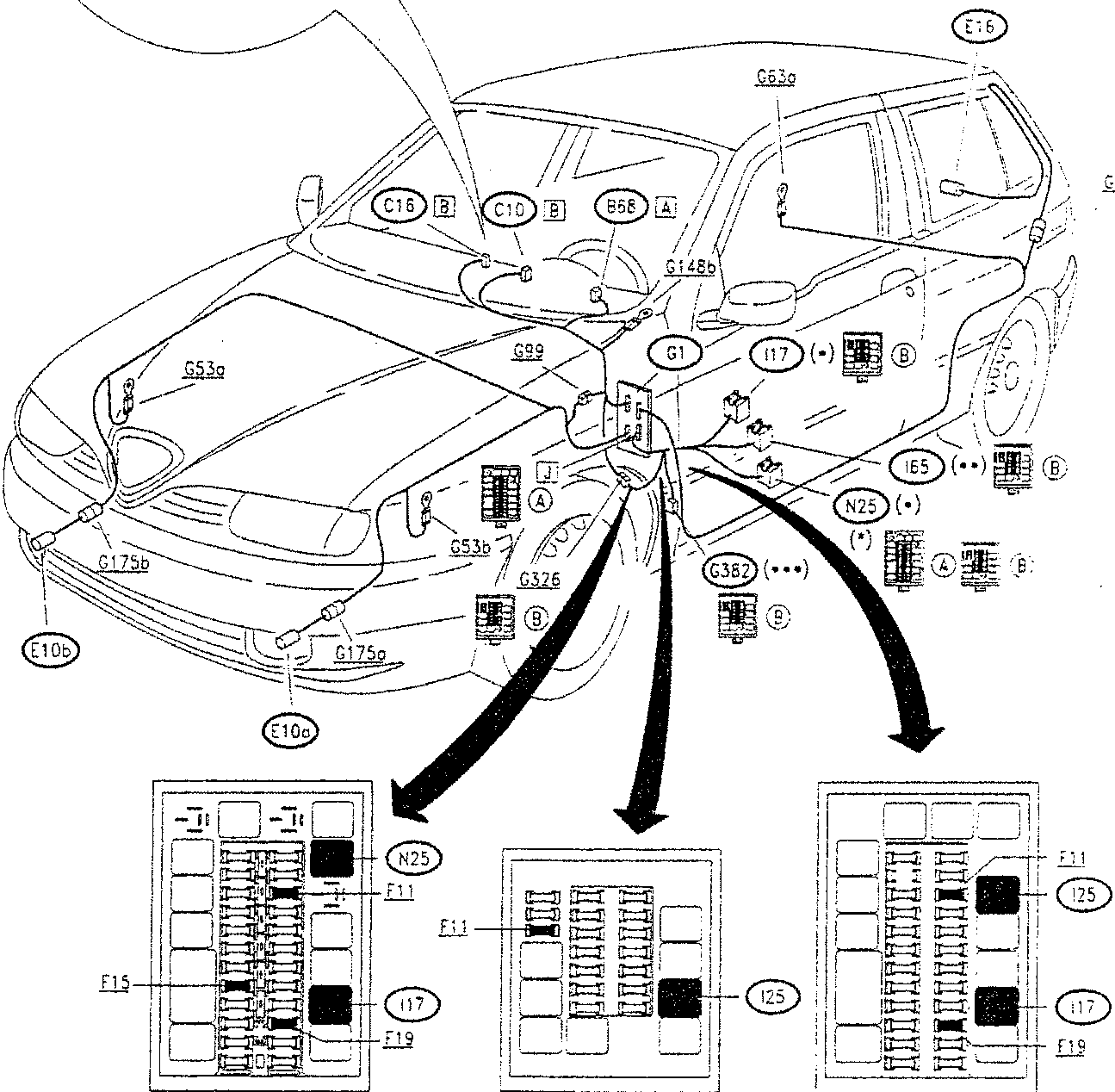

Location of components – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
LOCATION OF COMPONENTS
(*): from M.Y. '97
(•): grey base
(••): grey base
(•••): yellow fuseholder
