145 electrical system diagnosisComponents and connectors

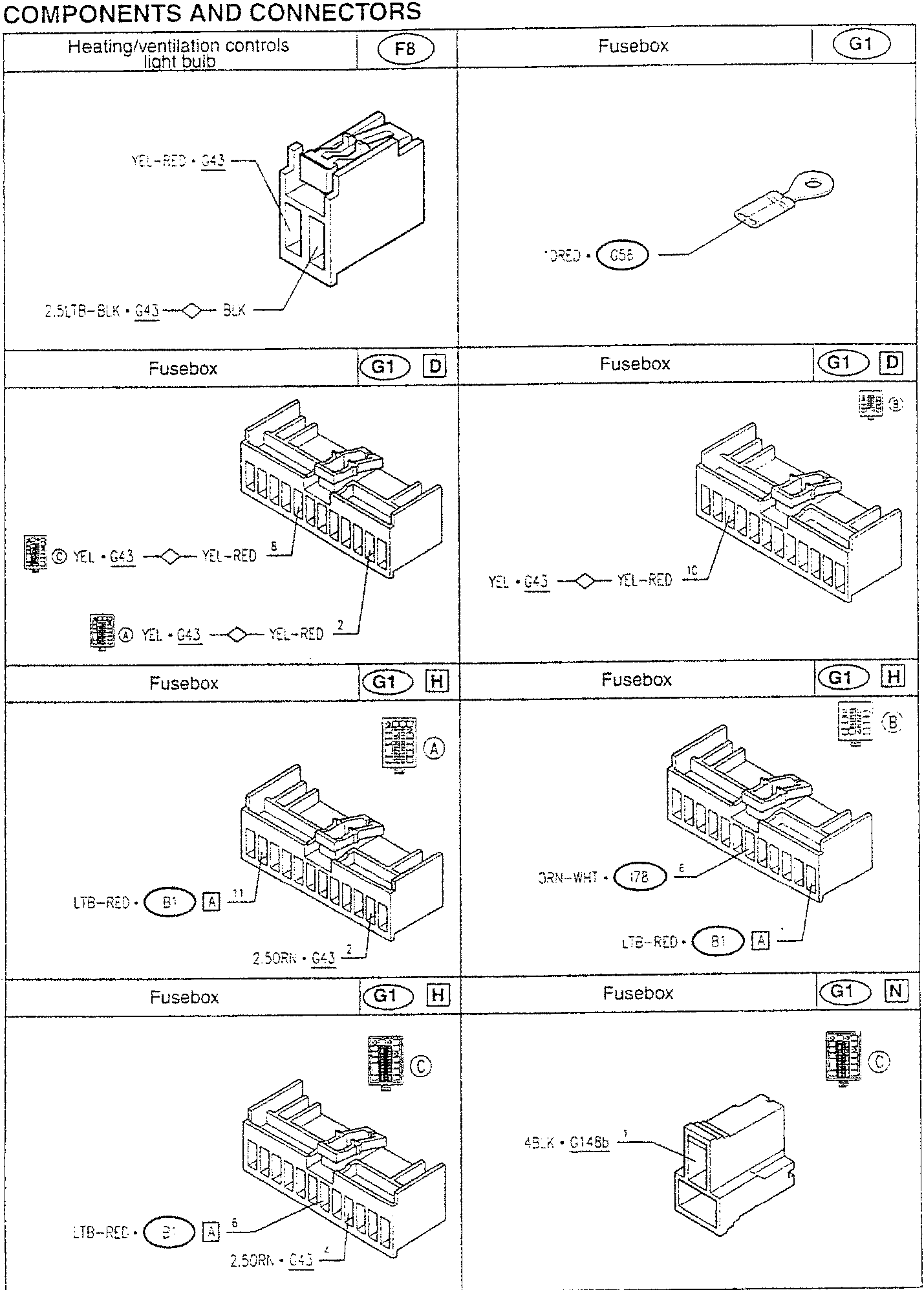

COMPONENTS AND CONNECTORS

Heating/ventilation controls light bulb	F8	Fusebox	G1
	F8	Fusebox	G1
				YEL-RED • G43	•RED • C56
2.5LTB-BLK • G43	BLK

Fusebox	G1 D	Fusebox	G1 D
	G1 D	Fusebox	G1 D
				YEL • G43 — YEL-RED 8	YEL • G43 — YEL-RED 1C
YEL • G43 — YEL-RED 2

Fusebox	G1 H	Fusebox	G1 H
	G1 H	Fusebox	G1 H
				LTB-RED • B1 A 11	ORN-WHT • I78 6
2.50RN • G43 2	LTB-RED • B1 A 1

Fusebox	G1 H	Fusebox	G1 N
	G1 H	Fusebox	G1 N
				LTB-RED • B1 A 6	4BLK • G148b 1
2.50RN • G43 4
