145 electrical system diagnosisHeating/ventilation fan control Q4
Heating/ventilation fan control Q4

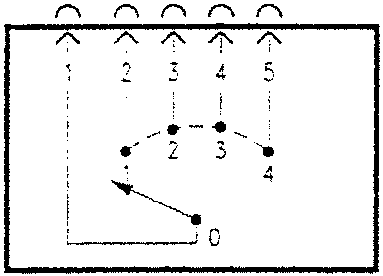

Check the contacts corresponding to the different positions of the knob.

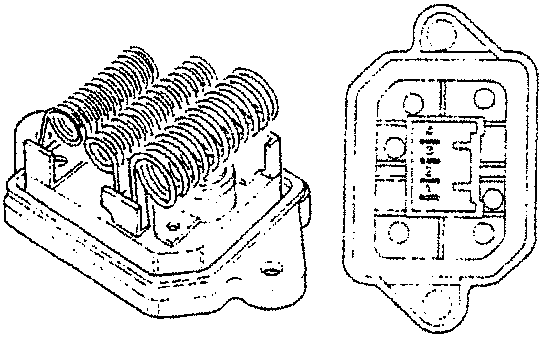

Heating/ventilation fan speed adjustment resistance Q5
| SPECIFICATIONS | ||
|---|---|---|
| Piece crossed | Total resistance | Fan speed |
| 4-1 | 3.55 Ω | 1.a |
| 3-1 | 1.35 Ω | 2.a |
| 2-1 | 0.35 Ω | 3.a |
| none | - | 4.a |
| Thermal fuse cut in temperature | 98°C | |
