145 electrical system diagnosisComponents and connectors

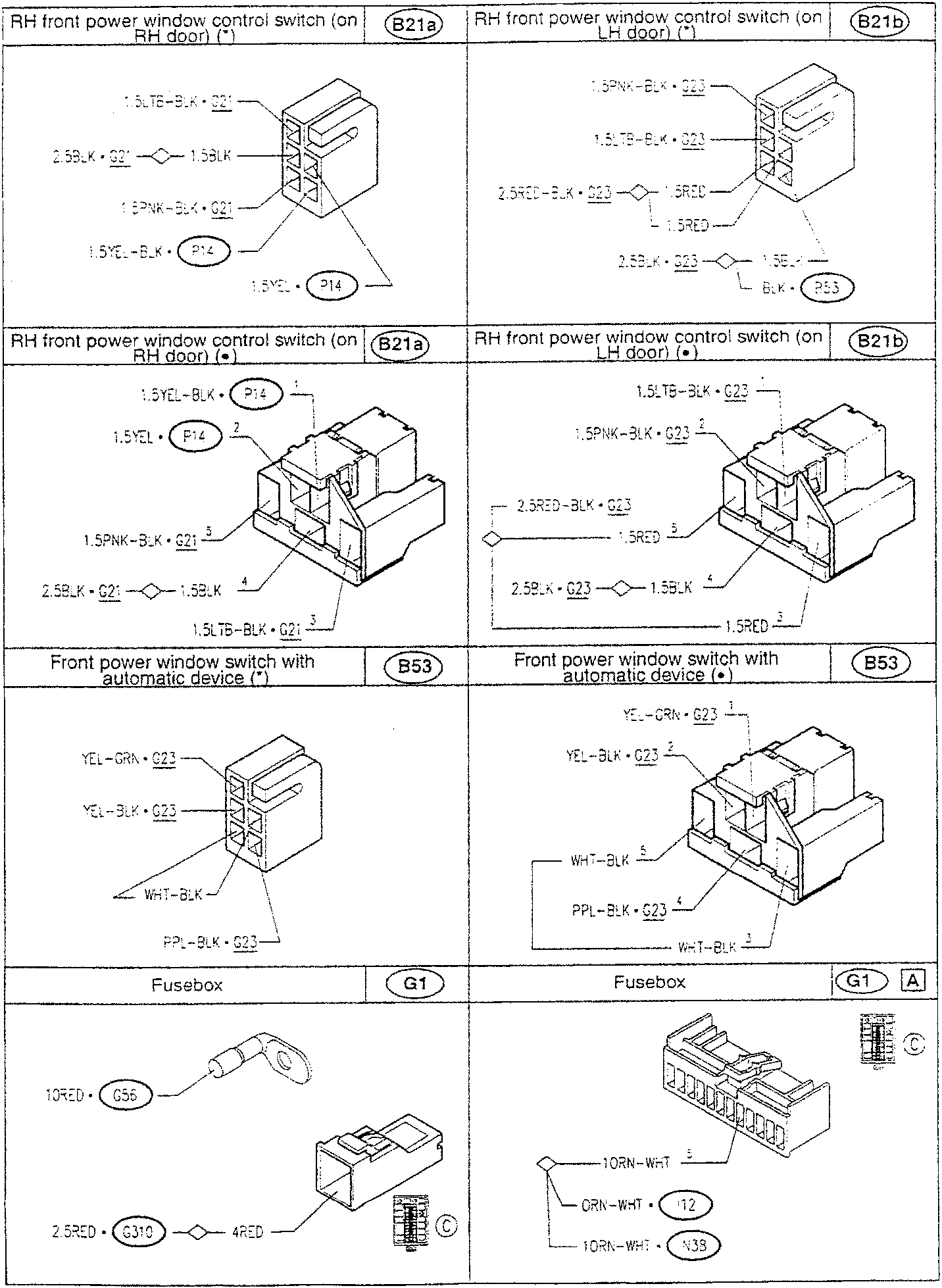

COMPONENTS AND CONNECTORS
| RH front power window control switch (on RH door) (*) | B21a | RH front power window control switch (on LH door) (*) | B21b |
|---|---|---|---|
|
|
||
| RH front power window control switch (on RH door) (●) | B21a | RH front power window control switch (on LH door) (●) | B21b |
|
|
|
||
| Front power window switch with automatic device (*) | B53 | Front power window switch with automatic device (●) | B53 |
|
|
|
||
| Fusebox | G1 | Fusebox | G1 A |
|
|
|
(*) up to chassis no....
PA493000000008
(●) from chassis no....
