145 electrical system diagnosisCOMPONENTS AND CONNECTORS (cont.d)

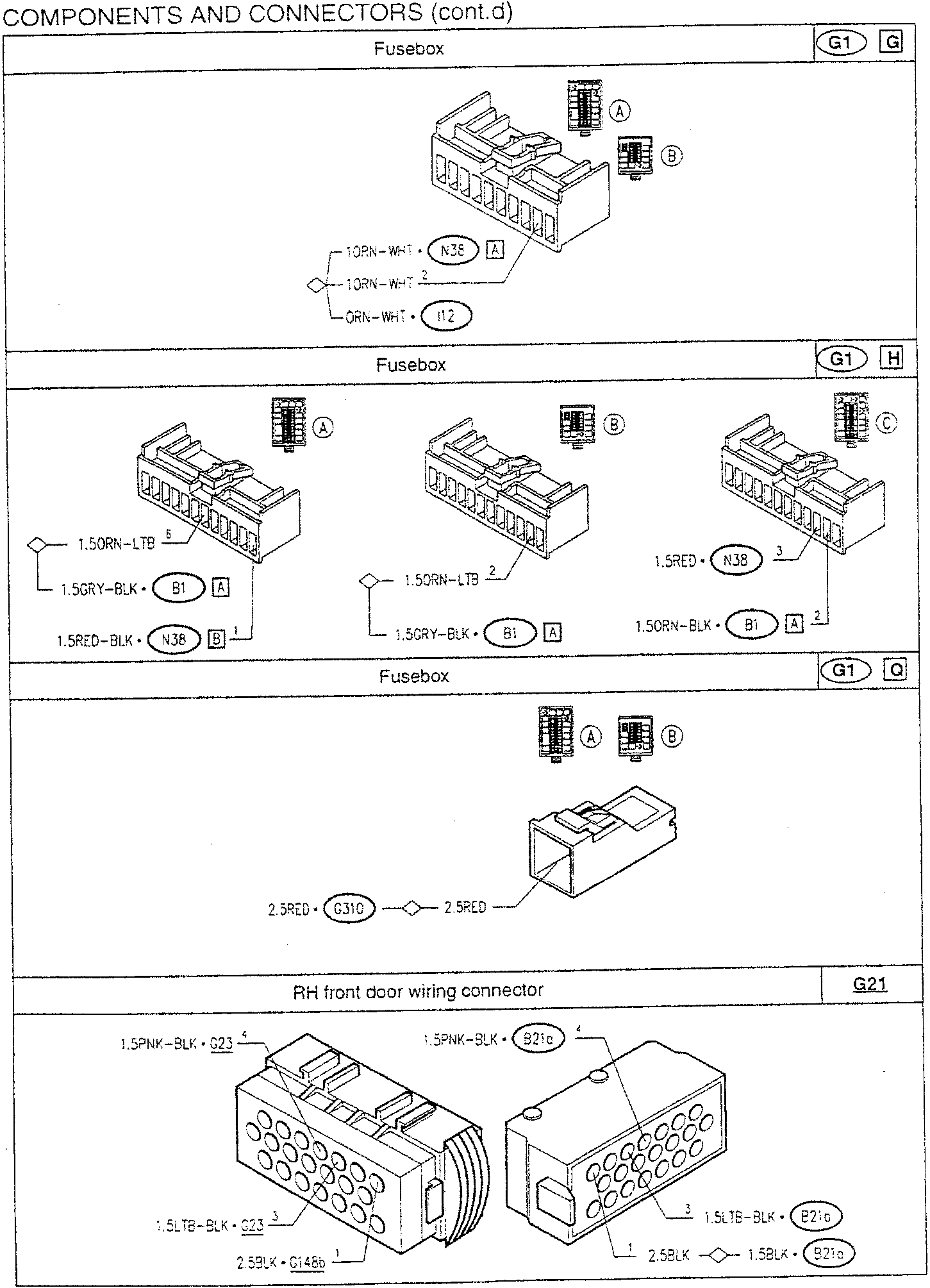

COMPONENTS AND CONNECTORS (cont.d)

Fusebox	G1 G
	1.5RN-WHT • N38 A 1.5RN-WHT 2 ORN-WHT • 112

Fusebox	G1 H
	1.5RN-LTB 6 1.5GRY-BLK • B1 A 1.5RED-BLK • N38 B 1 1.5RN-LTB 2 1.5RED • N38 3 1.5RN-BLK • B1 A 2

Fusebox	G1 Q
	2.5RED • G310 2.5RED

RH front door wiring connector	G21
	1.5PNK-BLK • G23 4 1.5LTB-BLK • G23 3 2.5BLK • G146b 1 1.5PNK-BLK • B21a 4 1.5LTB-BLK • B21a 3 2.5BLK • B21a 1
