145 electrical system diagnosisComponents and connectors

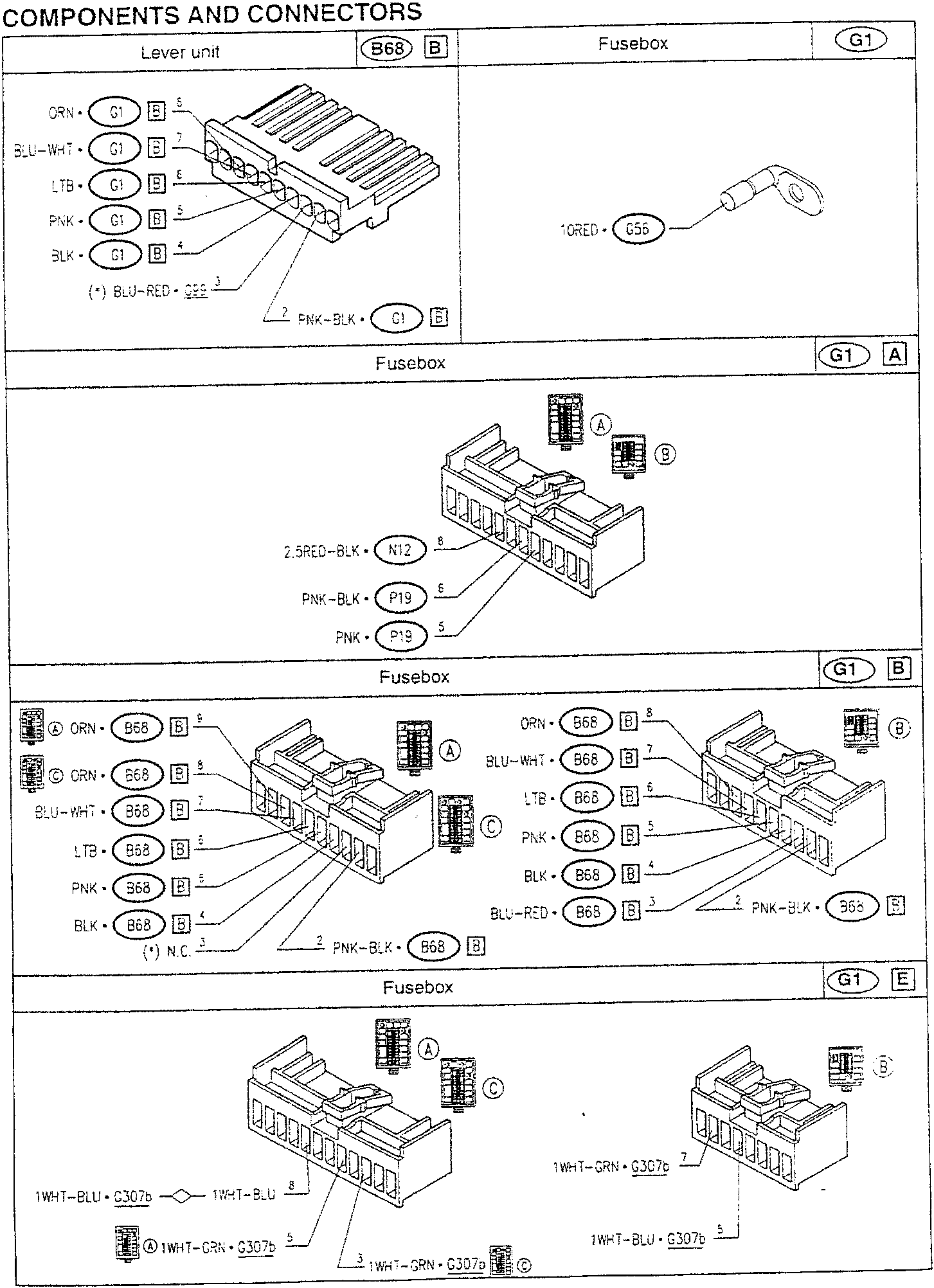

COMPONENTS AND CONNECTORS

Lever unit	B68 B	Fusebox	G1
ORN • G1 B 6	BLU-WHT • G1 B 7	LTB • G1 B 6	PNK • G1 B 5	BLK • G1 B 4	(*) BLU-RED • G66 3	2 PNK-BLK • G1 B
10RED • G56

Fusebox	G1 A
2.5RED-BLK • N12 8	PNK-BLK • P19 6	PNK • P19 5

Fusebox	G1 B
ORN • B68 B 8	BLU-WHT • B68 B 7	LTB • B68 B 6	PNK • B68 B 5	BLK • B68 B 4	BLU-RED • B68 B 3	2 PNK-BLK • B68 B
(*) N.C. 3

Fusebox	G1 E
1WHT-BLU • G307b 8	1WHT-GRN • G307b 5	3 1WHT-GRN • G307b C	1WHT-BLU • G307b 5

(*) from Model Year '97
