145 electrical system diagnosisFaultfinding table

FAULTFINDING TABLE

Failure	Component to be checked
	F3	F4	F15	G312	P1	P21	P20	P19	N14	N12	B68
Windscreen wiper (cont. speed)	●			●						●
Windscreen wiper (intermitt. speed)							●		●
Rear screen wiper		●			●		●
Windscreen/rear screen washer			●				●			●
Headlight washer			●	●		●				●

CHECKING COMPONENTS

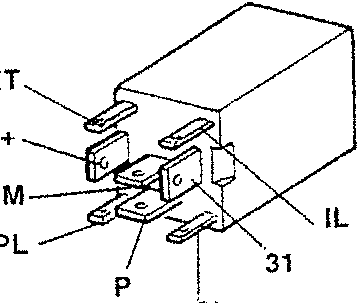

Windscreen wiper electronic intermittent device N14

Checking the device: see TEST A

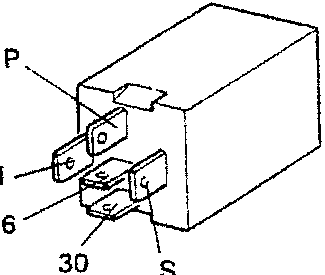

Headlamp washer timer N12

Checking the device: see TEST B
