145 electrical system diagnosisTerminal board
Terminal board – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
TERMINAL BOARD

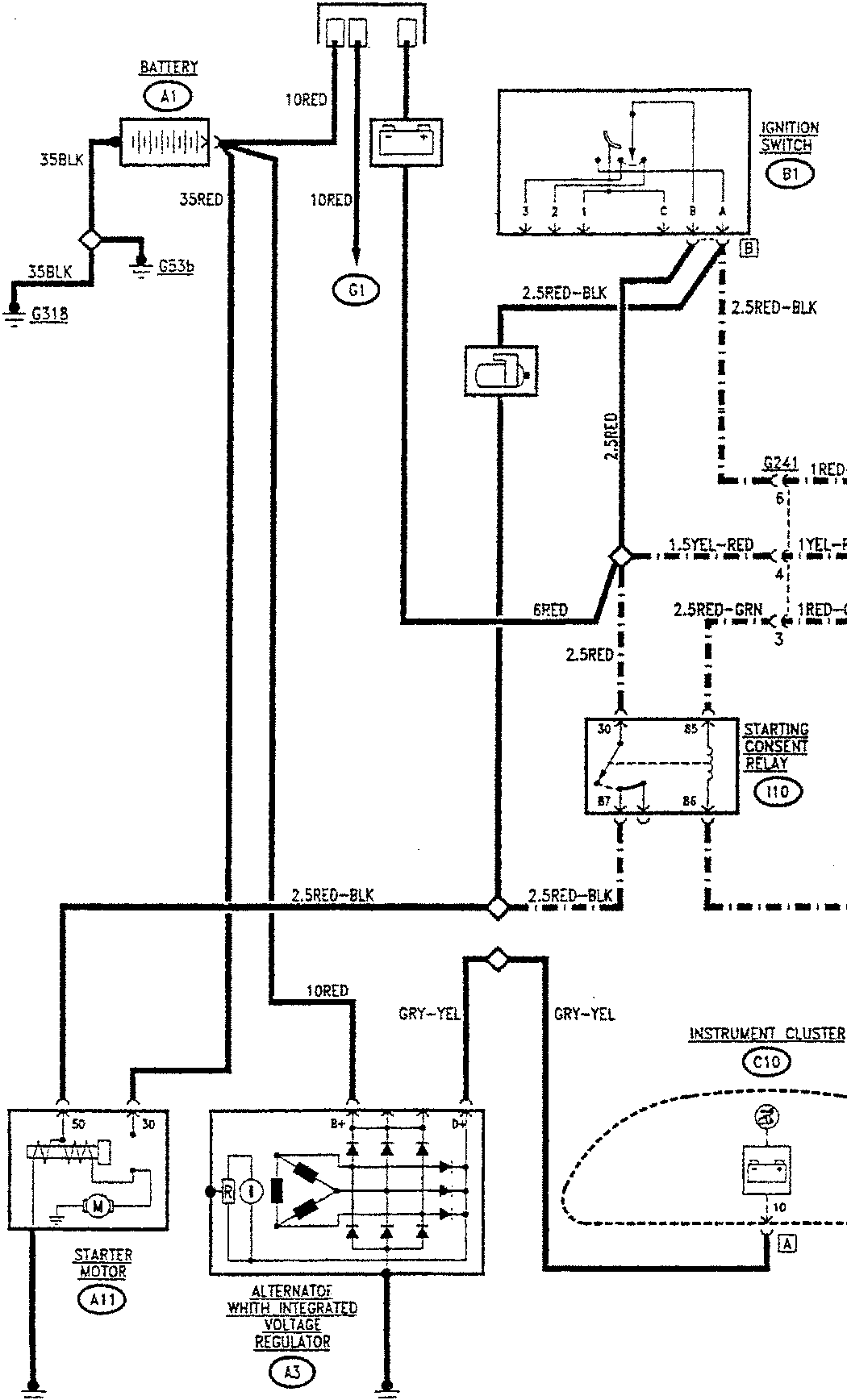

WIRING DIAGRAM (TD version - up to chassis no.....)
— — — variant for cars without ALFA ROMEO CODE, but with theft alarm
